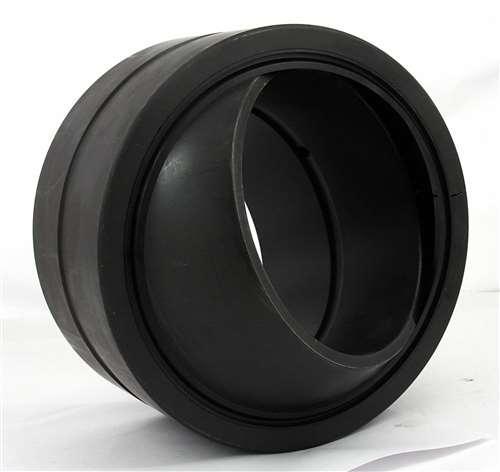

GE8E Spherical Bushing Plain Bearing 8x16x8 Miniature Plain Bearings

GE8E Double Sealed Spherical Plain Bearing, the inner race can swivel like a ball joint, the inner diameter is 8mm, outer diameter is 16mm and the width is 8mm, this is a popular size that could be used in many applications, bearing has 2 Rubber Seals to protect the bearing from dust or any possible contamination.

• Item: GE8E Bearing
• Type: Double Sealed Spherical Bushings Plain Bearing
• Material: Carbon Steel
• Closures: 2 Rubber Seals
• inner Diameter (ID): 8mm
• outer diameter (OD): 16mm
• Width/Height/thickness: 8mm
• Size: 8 x 16 x 8 mm
• Quantity: One Bearing
• Basic Dynamic Load Rating: 650 KGF
• Basic Static Load Rating: 3,900 KGF
• GE8E=GE8D0
