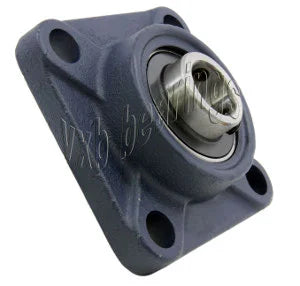

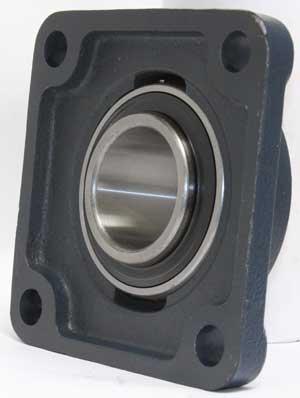

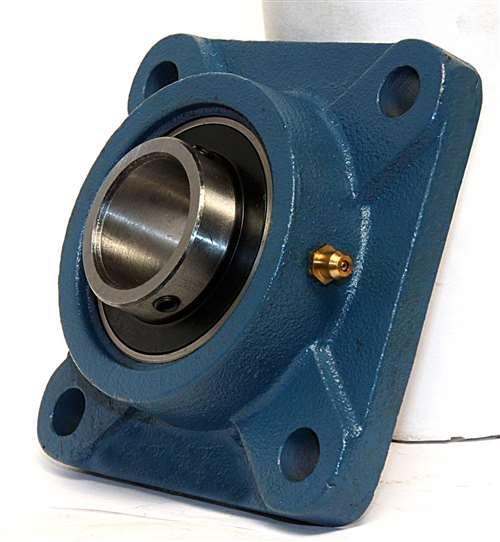

UCF206-20 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 1 1/4" inch.
- Item: UCF206-20 Ball Bearing
- Type: Flange Mounted Bearing
- Material: Chrome Steel
- Lubrication: Pre Lubricated
- Bolt Size: 3/8" inch
- Shaft Diameter: 1 1/4" inch
- Basic Load (Cr): 19,500 N
- Basic Load (Cor): 11,300 N
- Bearing No: UC206-20
- Housing No: F206
- Quantity: One Bearing

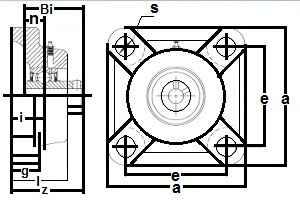

| Dimensions (inches) |
|---|
| a |
e |
i |
g |
l |
s |
z |
Bi |
n |
| 4-1/4" |
3-17/64" |
45/64" |
9/16" |
1-7/32" |
15/32" |
1-19/32" |
1-1/2" |
5/8" |
|
