1 1/8" Bearing HCF206-18 Square Flanged Housing Mounted Bearing with eccentric lockingCollar

1 1/8" Bearing HCF206-18 Square Flanged Housing Mounted Bearing with eccentric lockingCollar

$56.99 USD
$56.99 USD
Sale Sold out
UCF206-18 Four Bolt Flange Unit
Set Screw Type
1 1/8" inch Inner Diameter

HCF206-18Four Bolt Flange Unit, bearing is Set Screw Type with Eccentric locking collar, Inner Diameter is 1 1/8" inch.

  • Item: UCF206-18 Ball Bearing
  • Type: Flange Mounted Bearing with eccentric locking collar
  • Bolt Size: 3/8" inch
  • Basic Load Dynamic (Cr): 19,500 N
  • Basic Load Static (Cor): 11,300 N
  • Bearing No: HC206-18
  • Housing No: F206
  • Quantity: One Bearing

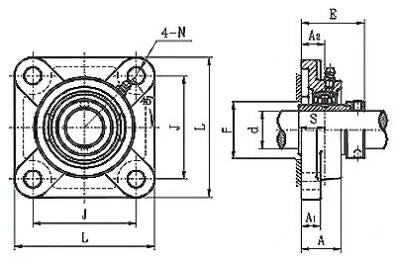

Dimensions
A A1 A2 E J L N S F min.
1 9/32" 23/32" 25/32" 1 31/32" 3 9/32" 4 1/4" 7/16" 23/32" 1 21/32"
