VXB

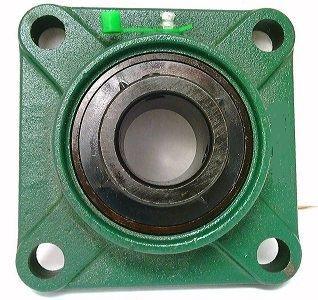

1 1/8" Bearing UCF206-18 Black Oxide Plated Insert + Square Flanged Housing Mounted Bearings

1 1/8" Bearing UCF206-18 Black Oxide Plated Insert + Square Flanged Housing Mounted Bearings

$58.99 USD
$58.99 USD
Sale Sold out
UCF206-18 Black Oxide Plated Insert + Four Bolt Flange Unit
Set Screw Type
1 1/8" inch Inner Diameter


UCF206-18 Black Oxide Plated Insert with Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 1 1/8" inch. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.

  • Item: UCF206-18 Black Oxide Plated Insert Bearing + Square flanged Housing
  • Type: Flange Mounted Bearing
  • Bolt Size: 3/8" inch
  • Basic Load Dynamic (Cr): 19,500 N
  • Basic Load Static (Cor): 11,300 N
  • Bearing No: UC206-18 Black
  • Housing No: F206
  • Quantity: One Bearing

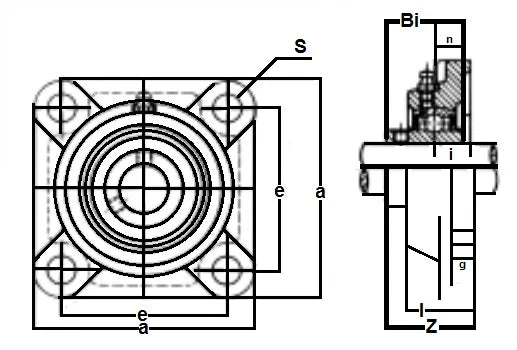

Dimensions (mm)
a e i g l s z Bi n
4-1/4" 3-17/64" 45/64" 9/16" 1-7/32" 15/32" 1-19/32" 1-1/2" 5/8"
