1 3/4" Bearing HCF209-28 Square Flanged Housing Mounted Bearing with Eccentric Collar

1 3/4" Bearing HCF209-28 Square Flanged Housing Mounted Bearing with Eccentric Collar

$82.99 USD
$82.99 USD
Sale Sold out
HCF209-28 Four Bolt Flange Unit
Set Screw Type with Eccentric Collar
1 3/4" Inch Inner Diameter


HCF209-28 Four Bolt Flanged Unit is a set screw type mounted bearing unit with inner diameter 1 3/4" inches.

  • Item: HCF209-28
  • Type: Flange Mounted Bearing with Eccentric Collar
  • Bolt Size: 1/2" inch
  • Shaft Diameter: 1 3/4" inch
  • Basic Load (Cr): 34.1 KN
  • Basic Load (Cor): 21.3 KN
  • Bearing No: HC209-28
  • Housing No: F209
  • Quantity: One Bearing

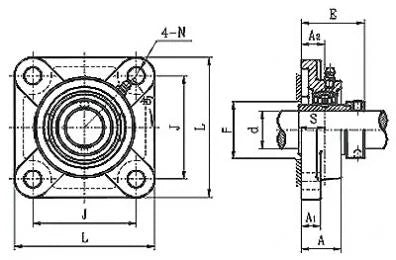

Dimensions (Inch)
d L J A2 A1 A E N S
1 3/4" 3 3/32" 4 1/8" 7/8" 5/8" 1 1/2" 2 1/4" 5/8" 27/32"
