1 3/4" Bearing UCP209-28 Black Oxide Plated Insert + Pillow Block Cast Housing Mounted Bearings

1 3/4" Bearing UCP209-28 Black Oxide Plated Insert + Pillow Block Cast Housing Mounted Bearings

$82.99 USD
$82.99 USD
Sale Sold out

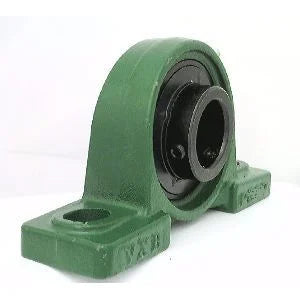

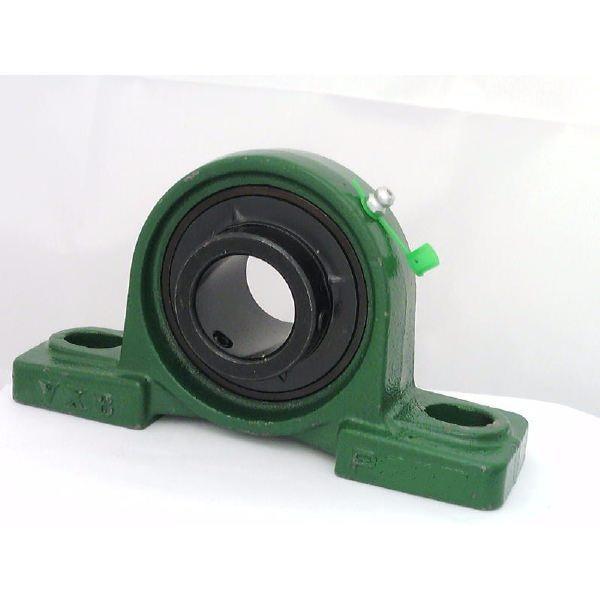

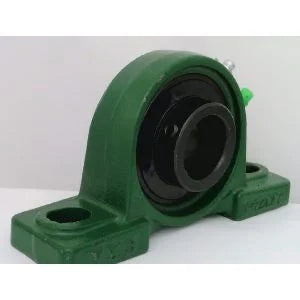

UCP209-28 Black Oxide Plated Insert + Pillow Block Bearing
Set Screw Type High-Center Height
1 3/4" inch Inner Diameter


UCP209-28 Black Oxide Plated Insert Pillow Block Bearing, UCP209-28 is Set Screw Type High-Center Height, Inner Diameter is 1 3/4". Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.

  • Item: UCP209-28 Black Oxide Plated Insert Bearing + Pillow block
  • Type: Pillow Block Mounted Bearing
  • Bolt Size: 1/2" inch
  • Basic Load (Cr): 34.1 KN
  • Basic Load (Cor): 21.3 KN
  • Bearing No: UC209-28
  • Housing No: P209
  • Quantity: One Bearing

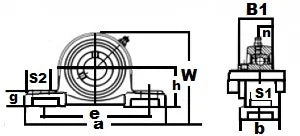

Dimensions (Inches)
h a e b S2 S1 g W B1 n
2-1/8" 7-15/32" 5-3/4" 2-1/8" 13/16" 21/32" 21/32" 4-3/16 1-15/16" 3/4"
