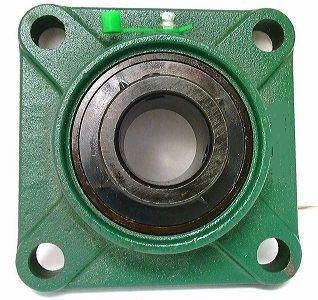

1 3/8" Bearing UCF207-22 Black Oxide Plated Insert Bearing + Square Flanged Housing Mounted Bearings

1 3/8" Bearing UCF207-22 Black Oxide Plated Insert Bearing + Square Flanged Housing Mounted Bearings

$70.99 USD
$70.99 USD
Sale Sold out
UCF207-22 Black Oxide Plated Insert Bearing
+ Square Flanged Mounted Bearing
Cylindrical bore (with set screws)
1 3/8" Inner Diameter

This heavy duty four-bolt flange unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Applications are Rotating drum, rotating roller and when precise mounting accuracy is required. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.

  • Item: UCF207-22 Black Oxide Plated Insert Bearing
  • Type: Four Bolt Flanged Bearing
  • Bolt Size: 7/16" Inch
  • Basic Load (Cr): 25.7 KN
  • Basic Load (Cor): 15.4 KN
  • Bearing No: UC207-22
  • Quantity: One Bearing

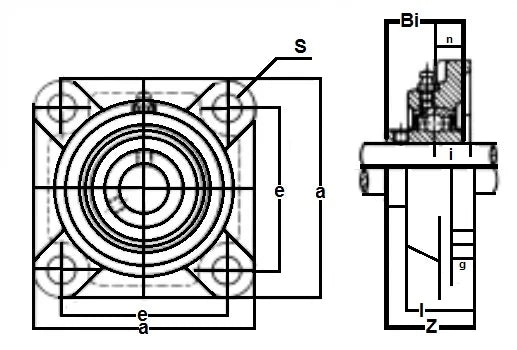

Dimensions (Inches)
a e i g l s z Bi n
4-19/32" 3-5/8" 3/4" 5/8" 1-11/32" 35/64" 1-3/4" 1-11/16" 11/16"
