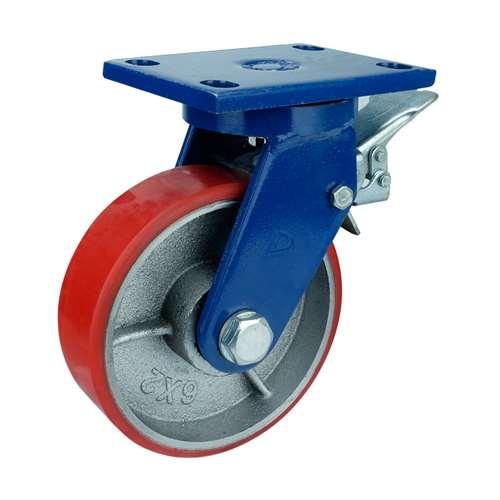

10" Inch Extra Heavy Duty Caster Wheel 3307 pounds Swivel and Upper Brake Cast iron polyurethane Top Plate

10" Inch Caster Wheel 3307 pounds Swivel and Upper Brake Cast iron polyurethane Top Plate

Item Name= VXB009C250BCPUB

Extra Heavy Duty

Wheel Diameter= 250mm

Wheel Width= 75mm

Wheel Diameter= 10" Inch = 250mm

Overall Height= 320mm

Overall Height Inch= 12.598"

Mounting Type= Top Plate

Top Plate Size= 200mm x 153mm Top Plate: 14mm+housing: 10mm

Hole distance= 160mm x 90mm

Wheel Core= Cast iron polyurethane

Tire= Cast iron polyurethane

Bearing type= Precision double ball bearing

Load Capacity= 3307 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

VXB009C250BCPUB is a device comprising a wheel that's connected to the base of a huge object like a trailers, your home furniture, even your truck to transfer the item more quickly and readily. them.You need {Item Name} to have your office desk, equipment or even a machine to easily roll them around. Diameter size of the caster wheel has a metric standard 250mm which is equal to 9.843" inch with imperial units. The wheel has a width of 75mm=2.953" inch. The Caster with the wheel from end to end is 320mm = 12.598" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 200mm x 153mm Top Plate: 14mm+housing: 10mm and holes distance of 160mm x 90mm. The weehl core material is Cast iron polyurethane and has a Cast iron polyurethane tire with a low friction Precision double ball bearing. Bearing in mind that every caster wheel has the load capacity of 3307 lb with a Swivel and Upper Brake type. Environment temperature range is -40 to 180 F. Buy the VXB009C250BCPUB now, just add the quantity to basket and click on Checkout.
