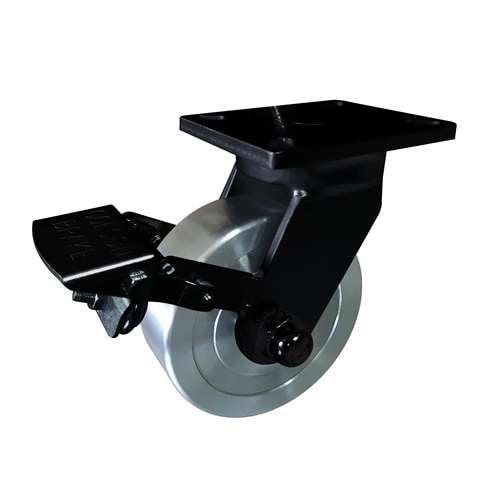

10" Inch Extra Heavy Duty Caster Wheel 3307 pounds Swivel and Upper Brake Cast iron polyurethane Top Plate

10" Inch Caster Wheel 3307 pounds Swivel and Upper Brake Cast iron polyurethane Top Plate

Item Name= VXB009C250BFSB

Extra Heavy Duty

Wheel Diameter= 250mm

Wheel Width= 75mm

Wheel Diameter= 10" Inch = 250mm

Overall Height= 320mm

Overall Height Inch= 12.598"

Mounting Type= Top Plate

Top Plate Size= 200mm x 153mm Top Plate: 14mm+housing: 10mm

Hole distance= 160mm x 90mm

Wheel Core= Cast iron polyurethane

Tire= Cast iron polyurethane

Bearing type= Precision double ball bearing

Load Capacity= 3307 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Moves large items quicker using the VXB009C250BFSB. And rolling on wheel that has 250mm diameter/9.843" inch. The thickness of the wheel is 75mm or 2.953" inch. The caster dimensions heightwise is 320mm/12.598" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 200mm x 153mm Top Plate: 14mm+housing: 10mm and holes distance of 160mm x 90mm. The Precision double ball bearing design will enable the Cast iron polyurethane tire to roll easily with a core made of Cast iron polyurethane. Bearing in mind that every caster wheel has the load capacity of 3307 lb with a Swivel and Upper Brake type. Temperature range is -40 to 180 F. Buy our VXB009C250BFSB, we wish all the best.
