100pcs THK made in Japan 9mm Stainless Steel Linear Guideway System 195mm Long with one carriage Truck

100pcs THK made in Japan 9mm Stainless Steel Linear Guideway System 195mm Long with one carriage Truck

$1,995.99 USD
$1,995.99 USD
Sale Sold out
THK made in Japan 9mm Stainless Steel Linear Guideway System
195mm length Rail
Quantity of 100

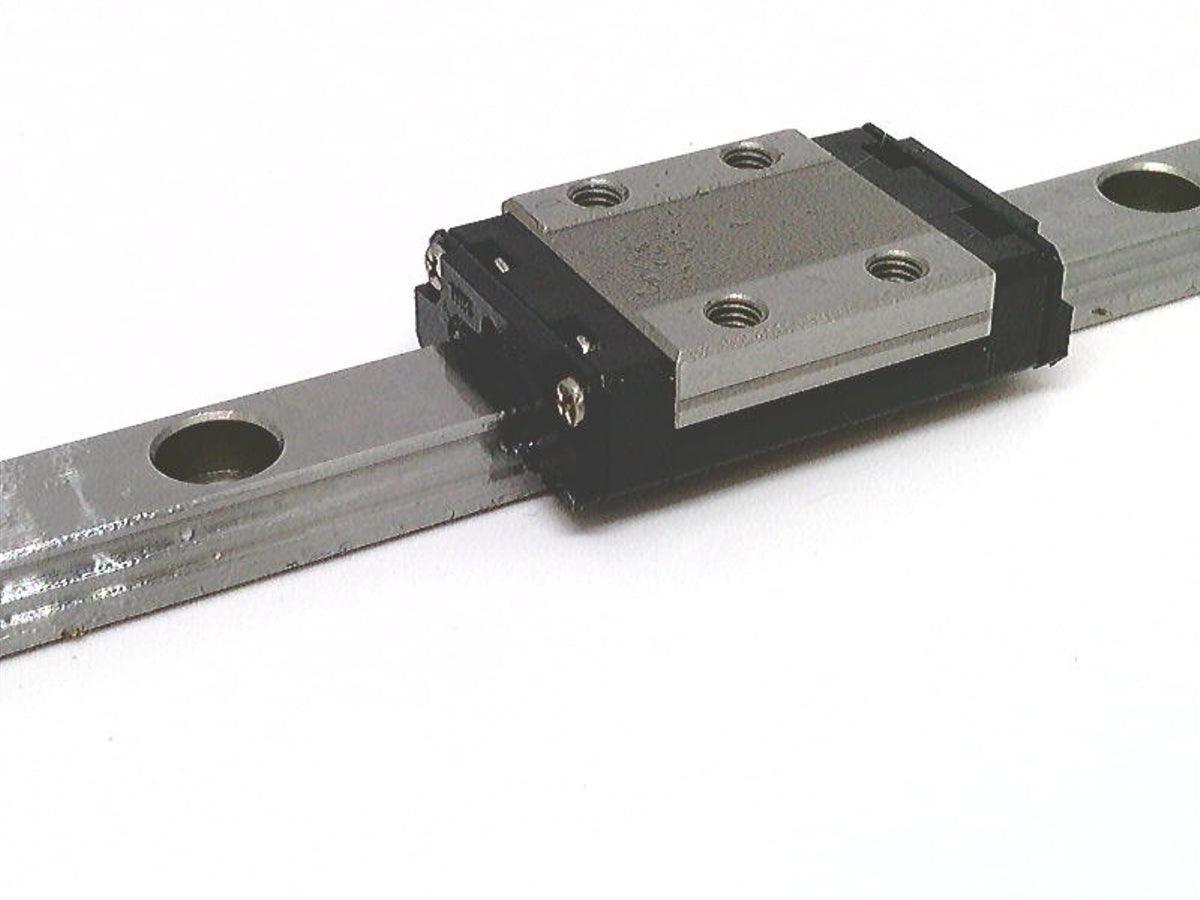

SRS 9XMUU Complete linear guideway system with one Square type carriage installed, Diameter Shaft is 9mm and Rail long is 195mm

  • Rail width : 9mm
  • Rail length: 195mm
  • g: 7.5mm
  • Model number: SRS9XM
  • Material: 440C Stainless Steel
  • Block Dynamic load rating: 2.69 KN
  • Block Static load rating: 2.31 KN
  • High repeatability and smooth running performance
  • Stiffness, strength and accuracy for improved production processes

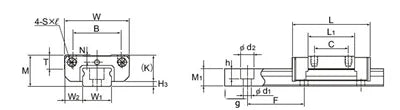

Model
number		 Outer dimensions(mm) Block dimensions(mm) Rail Dimensions(mm)
Height
M 		Width
W 		Length
L 		B C s x l Pitch
F 		1xd2xh g
SRS9M 10 20 9.5 15 10 M3 x 3.2 20 3.5x6x3.3 7.5mm
