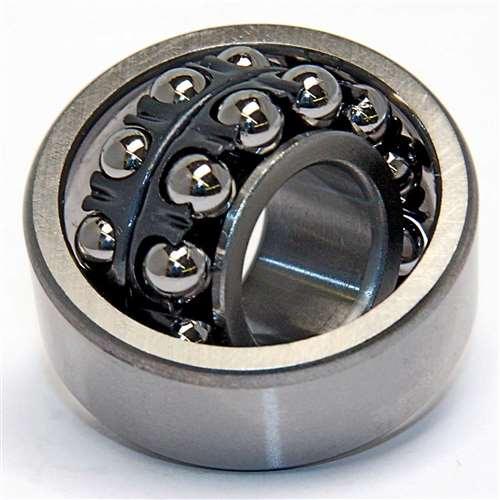

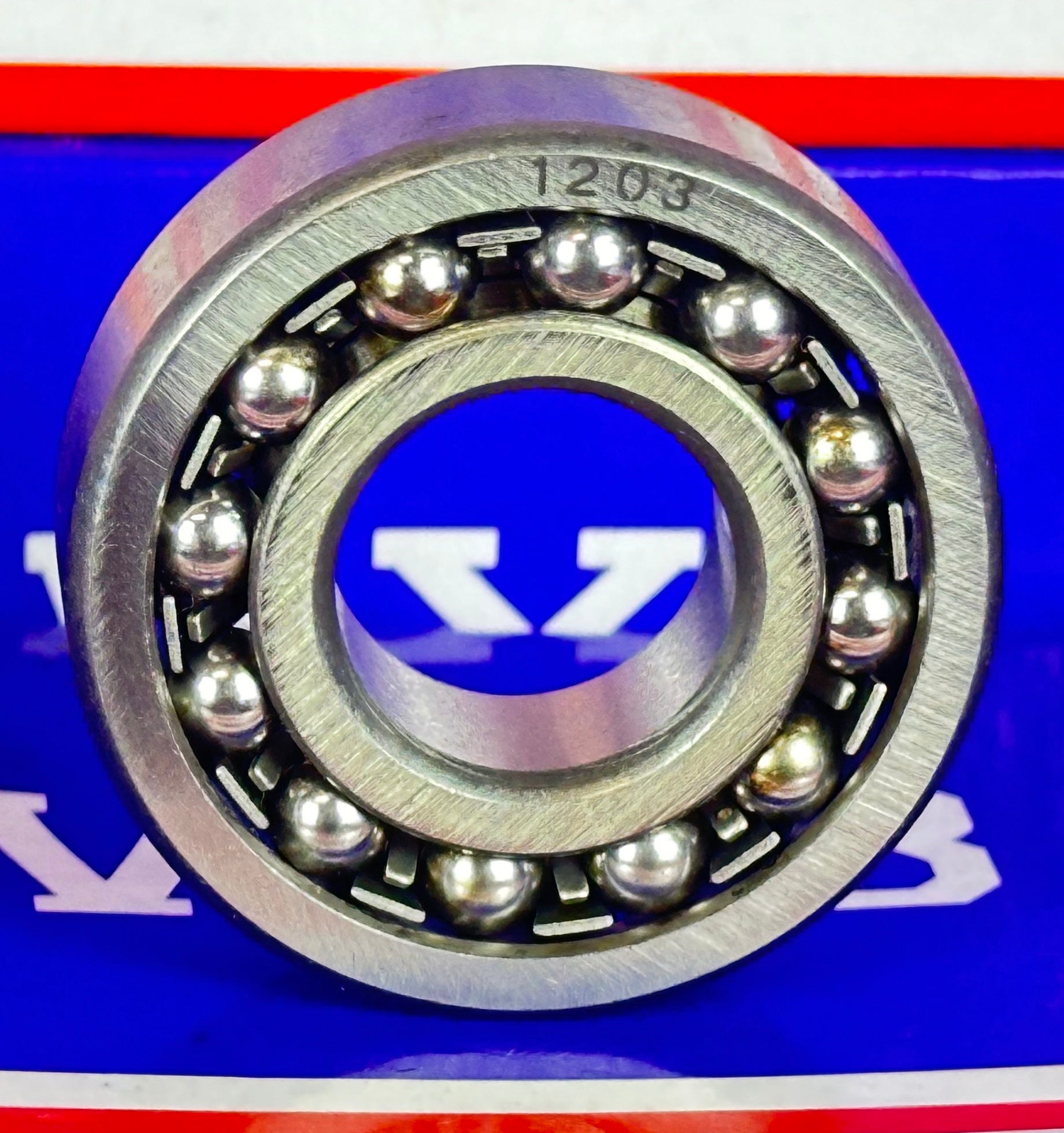

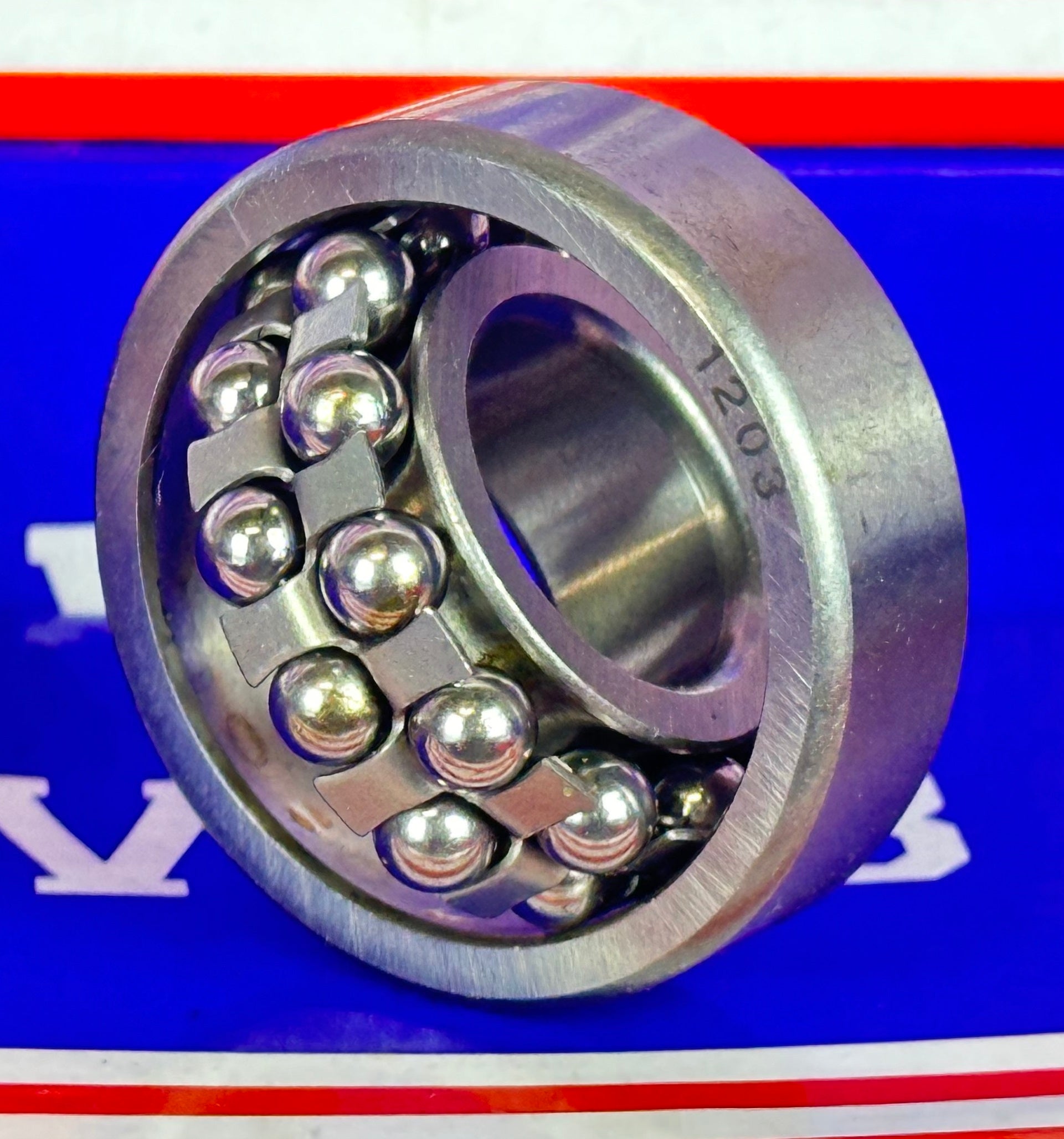

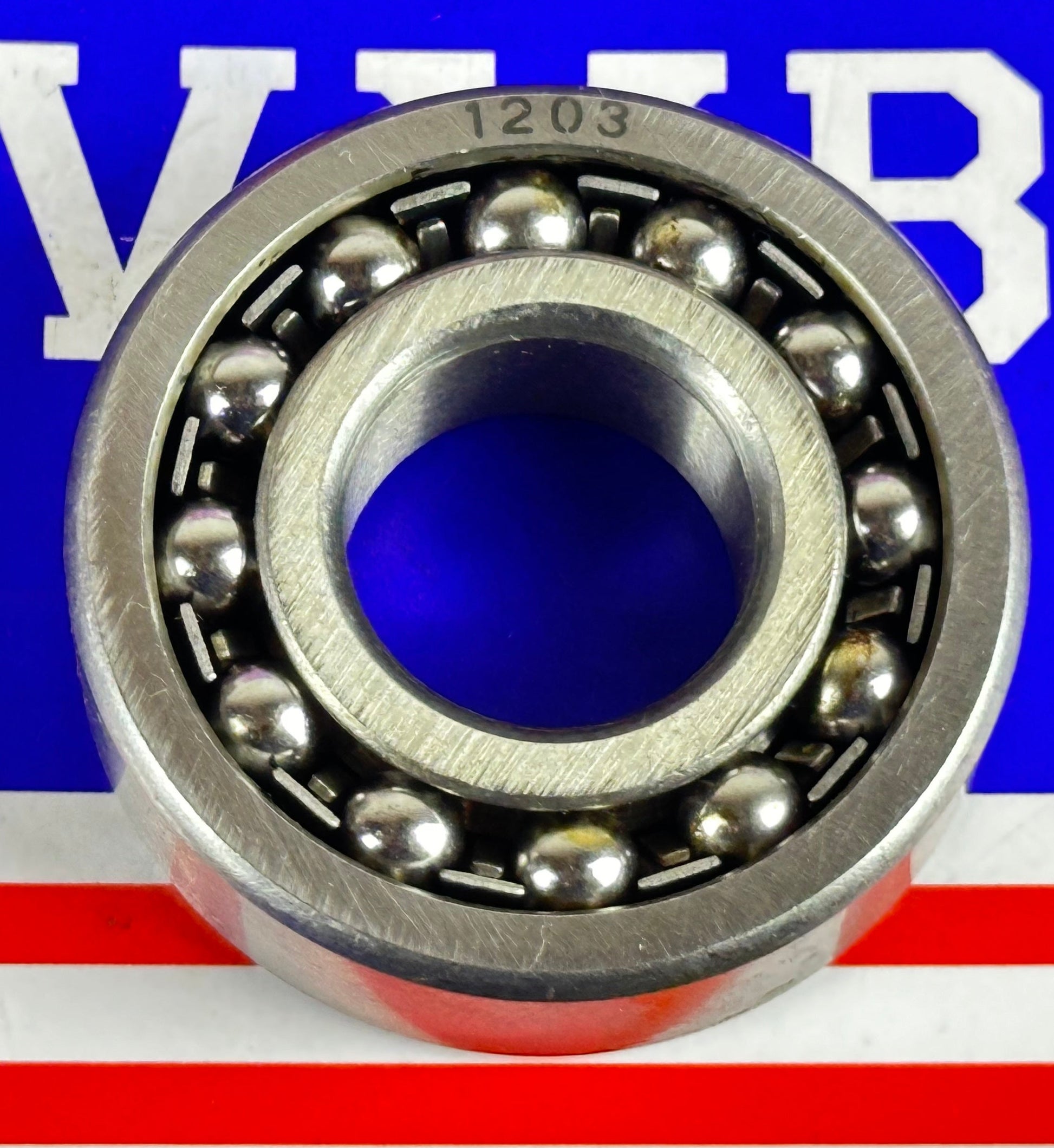

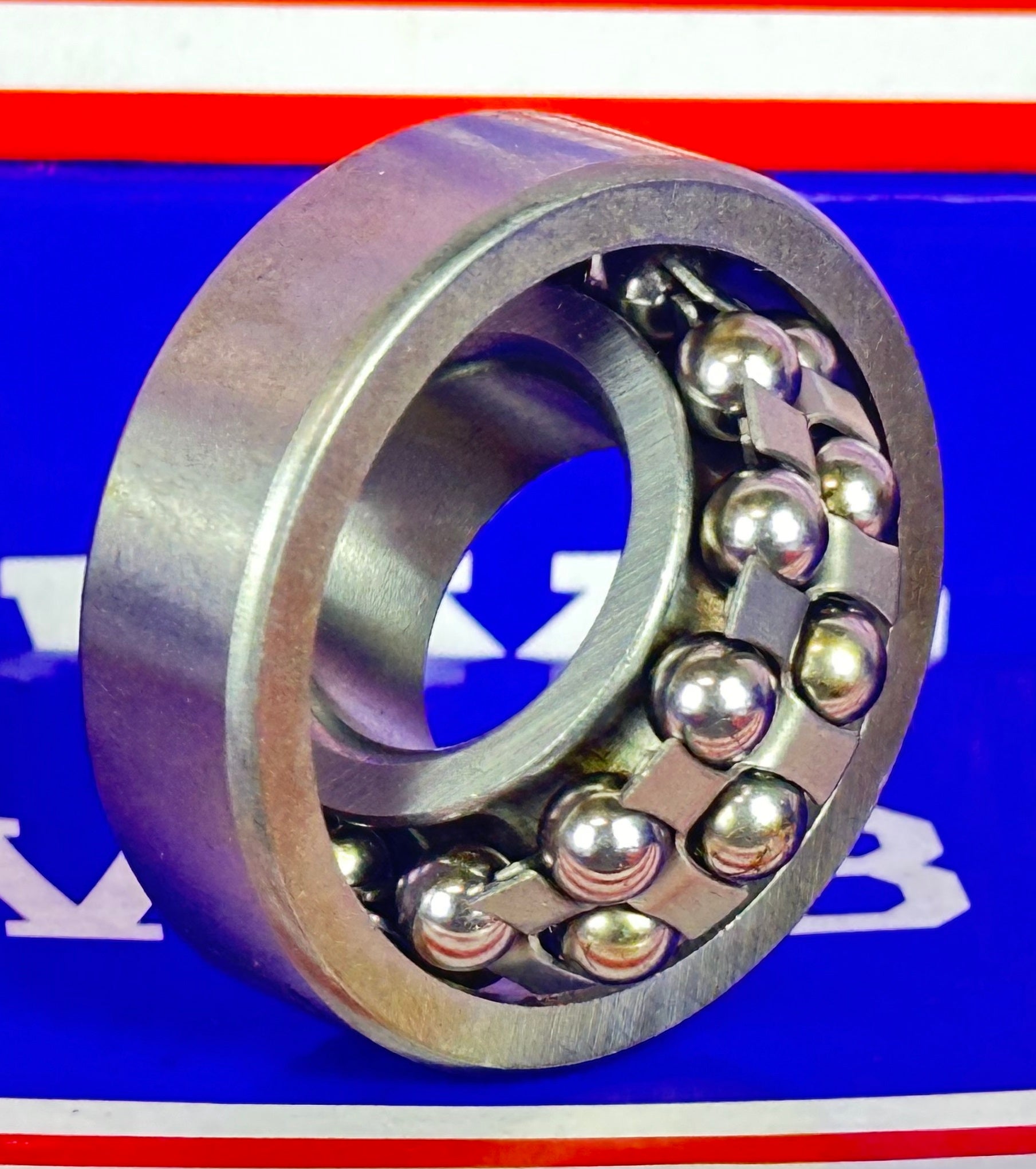

1203 Self Aligning Ball Bearing has a spherical outer ring raceway, the balls and cage continue to rotate, this type of bearings is suitable when the displacement of the centers around which the shaft and housing rotate and shaft deflection are likely to occur.Bearing is made of Chrome Steel.
- Item: 1203 Ball Bearing
- Type: Self Aligning Ball Bearing
- Size: 17mm x 40mm x 12mm
- Bearing Inner Diameter: 17mm
- Bearing Outer Diameter: 40mm
- Bearing Width: 12mm
- Size: 17 x 40 x 12 mm
- Quantity: One Bearing
- Dynamic load rating Cr: 8,840 N
- Static load rating Cor: 2,200 N
- Limiting Speed:
- Grease Lubrication: 18,000 RPM
- Oil Lubrication: 22,000 RPM
|
