12mm Bearing HCF201 Square Flanged Cast Housing Mounted Bearing and Insert with Eccentric Collar

12mm Bearing HCF201 Square Flanged Cast Housing Mounted Bearing and Insert with Eccentric Collar

$37.99 USD
$37.99 USD
Sale Sold out
HCF201 12mm Square Mounted Bearing
with Insert with Eccentric Collar Lock
One Bearing

HCF201 12mm Mounted Bearing with inner diameter 12mm.

  • Item: HCF201 Bearing
  • Type: Mounted Bearings
  • Bolt Size: M10
  • Shaft Diameter: 12mm
  • Basic Load (Cr): 12,800 N
  • Basic Load (Cor): 6,650 N
  • Bearing No: HC201
  • Quantity: One Bearing

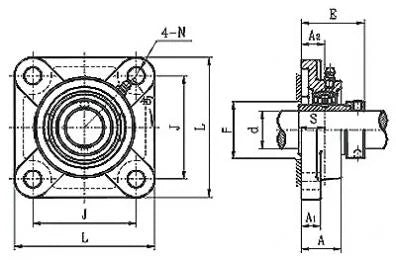

Dimensions (mm)
L J A2 A1 A E N S F min.
86 64 19 15 29.5 45.5 11.5 17 31
