17mm Bearing HCF203 Square Flanged Cast Housing Mounted Bearing with Eccentric Collar Lock

17mm Bearing HCF203 Square Flanged Cast Housing Mounted Bearing with Eccentric Collar Lock

$37.99 USD
$37.99 USD
Sale Sold out
HCF203 17mm Square Flanged Mounted Bearing
with Eccentric Collar Lock
One Bearing


HCF203 17mm mounted bearing with eccentric collar lock. The inner diameter is 17mm.

  • Item: HCF203
  • Type: Flanged Squared Mounted Bearing Eccentric Collar
  • Bolt Size: M10
  • Shaft Diameter: 17mm
  • Basic Load (Cr): 12,800 N
  • Basic Load (Cor): 6,650 N
  • Bearing No: HC203
  • Housing No: F203
  • Quantity: One Bearing

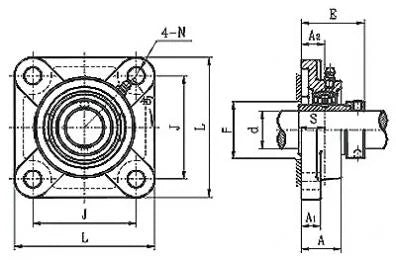

Dimensions (mm)
L j A2 A1 A E N S F min.
86 64 19 15 29.5 45.5 11.5 17 31
