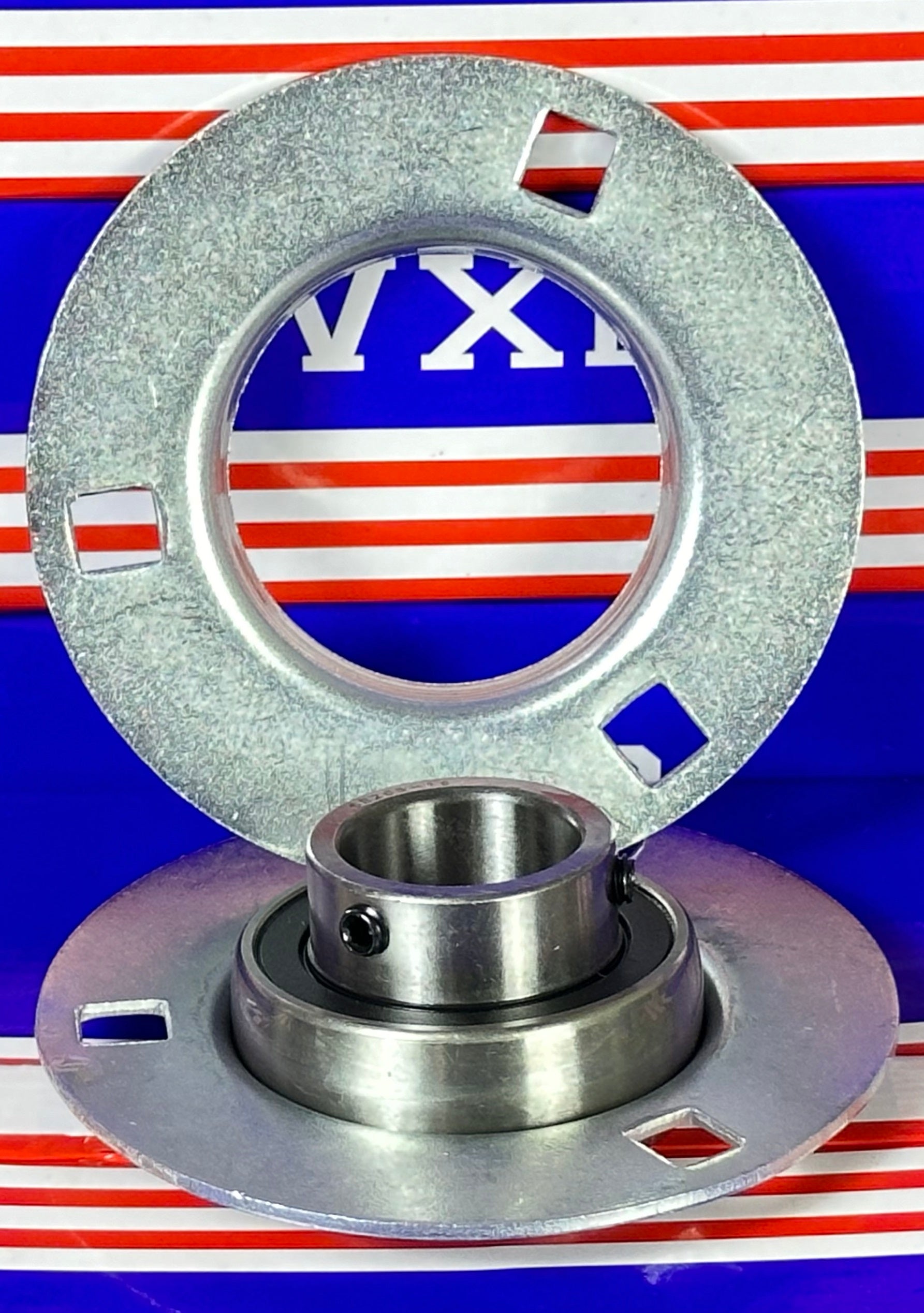

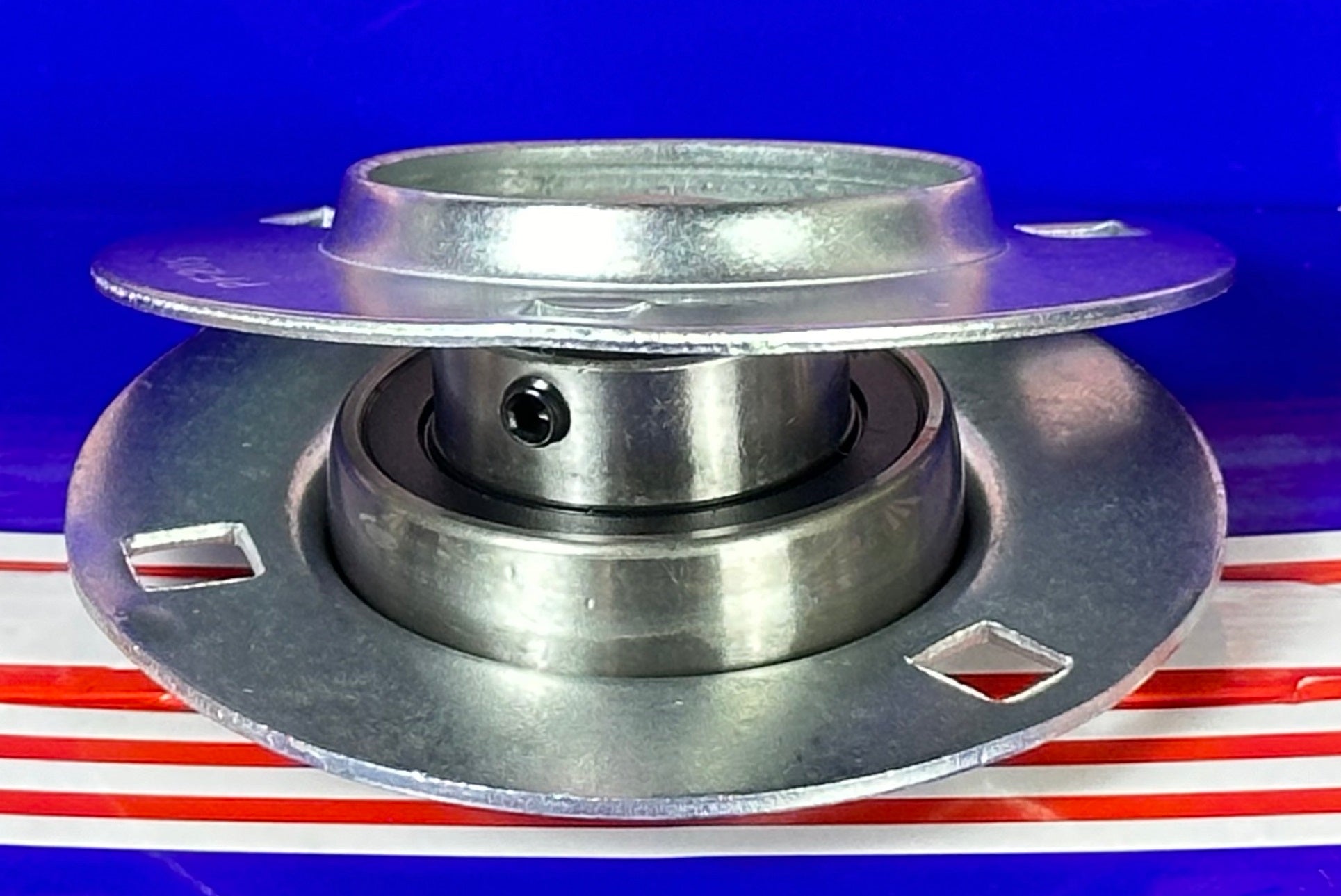

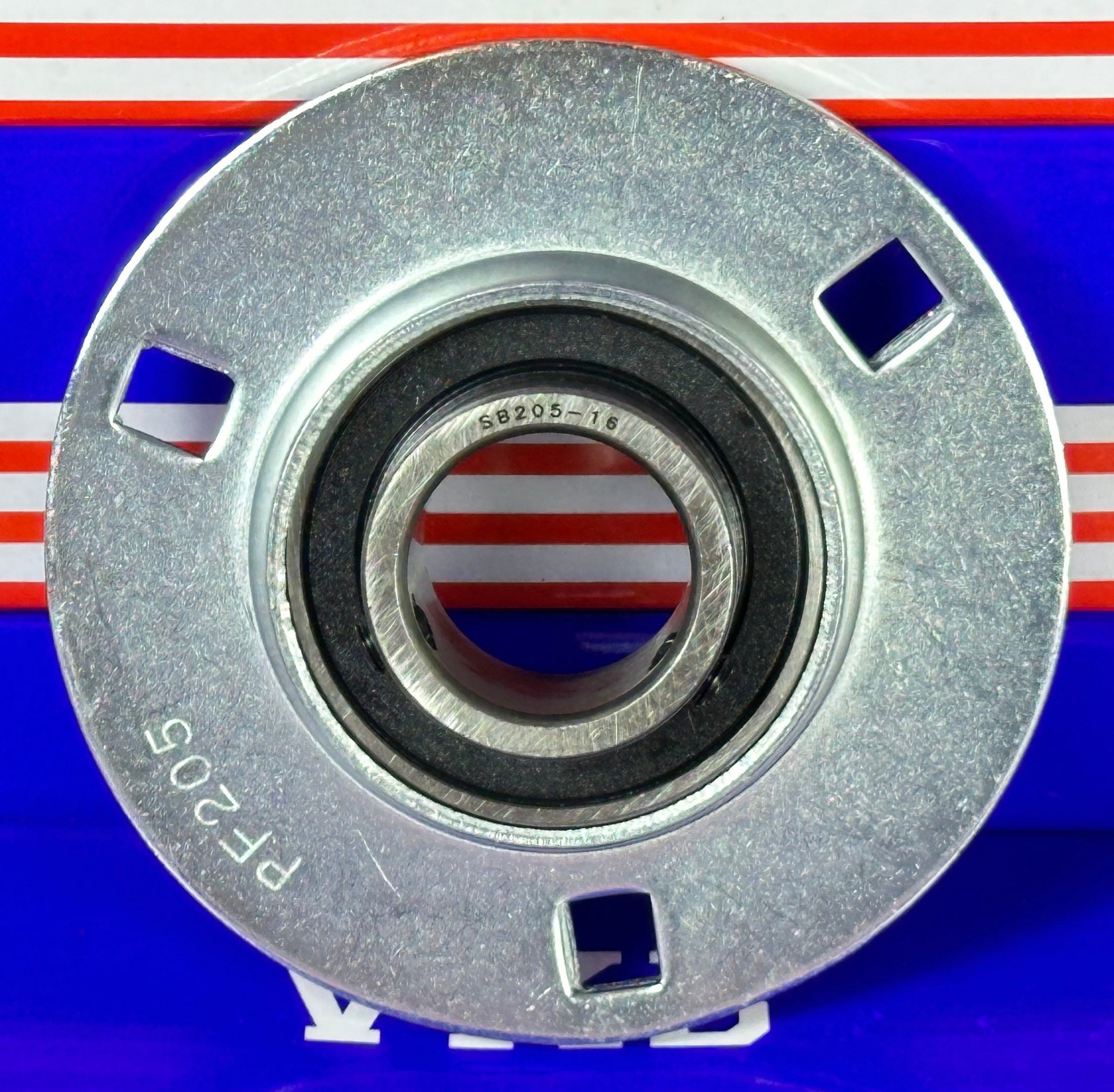

SBPF205-16 Pressed Steel Housing Unit, bearing is 3-Bolt Flanges and Shaft Diameter is 1" Inch.
- Item: SBPF205-16 Bearing
- Type: Pressed Steel Housing Unit
- Shaft Diameter: 1" Inch
- Bolt Size: 5/16" Inch
- Bearing No: SB205-16
- Housing No: PF205
- Basic Load (Cr): 14 KN
- Basic Load (Cor): 7.85 KN
- Quantity: One bearing

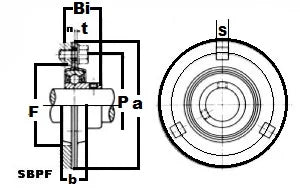

| Dimensions (Inches) |
| a |
p |
t |
b |
s |
F |
Bi |
n |
| 3-3/4" |
3" |
0.079" |
51/64" |
23/64" |
2-3/8" |
1-1/16" |
0.295" |
|
