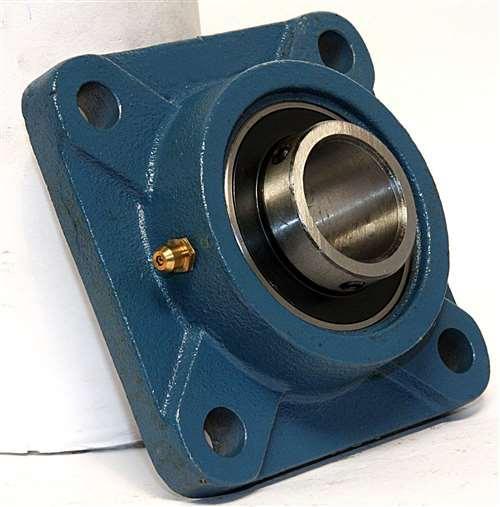

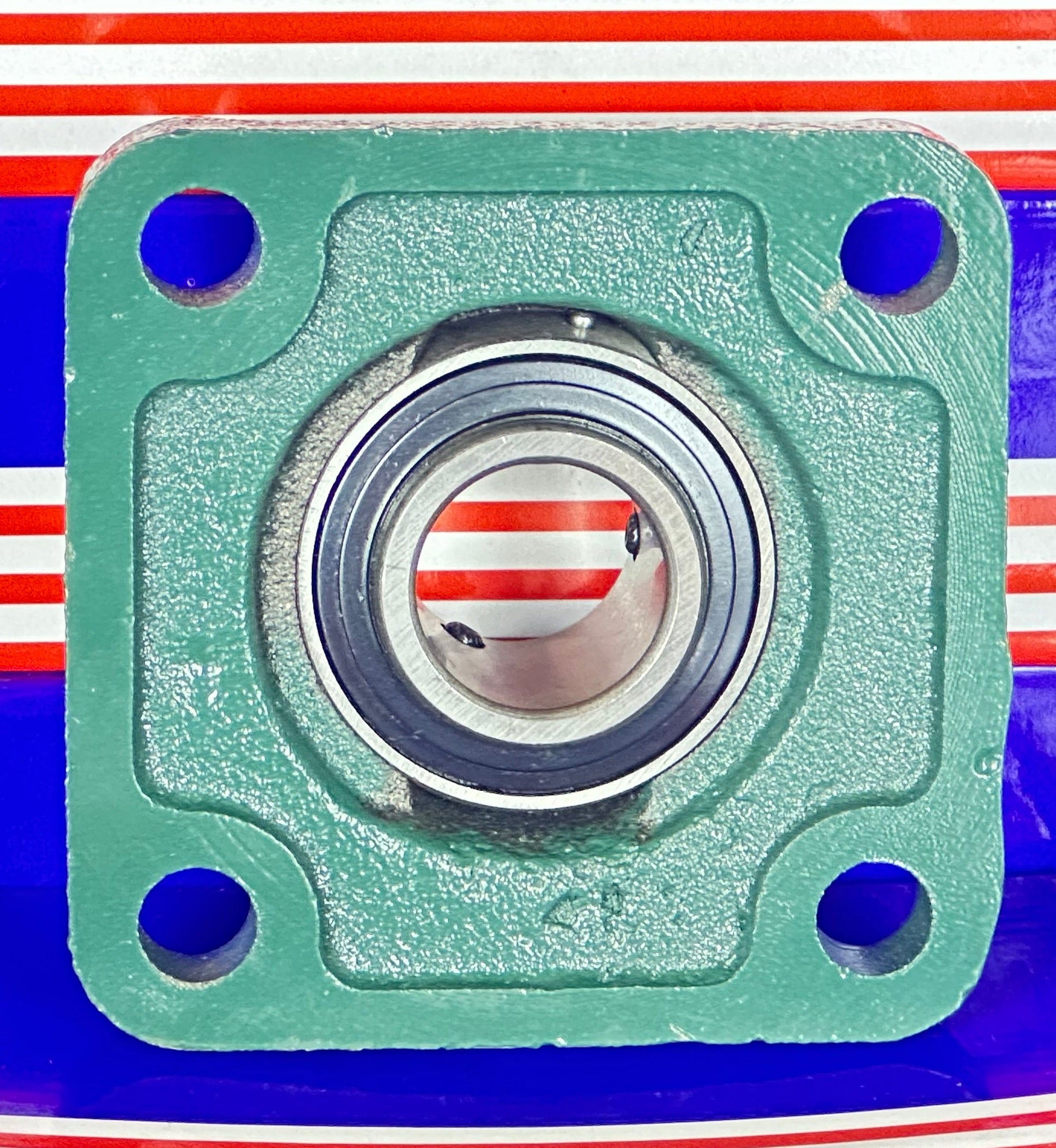

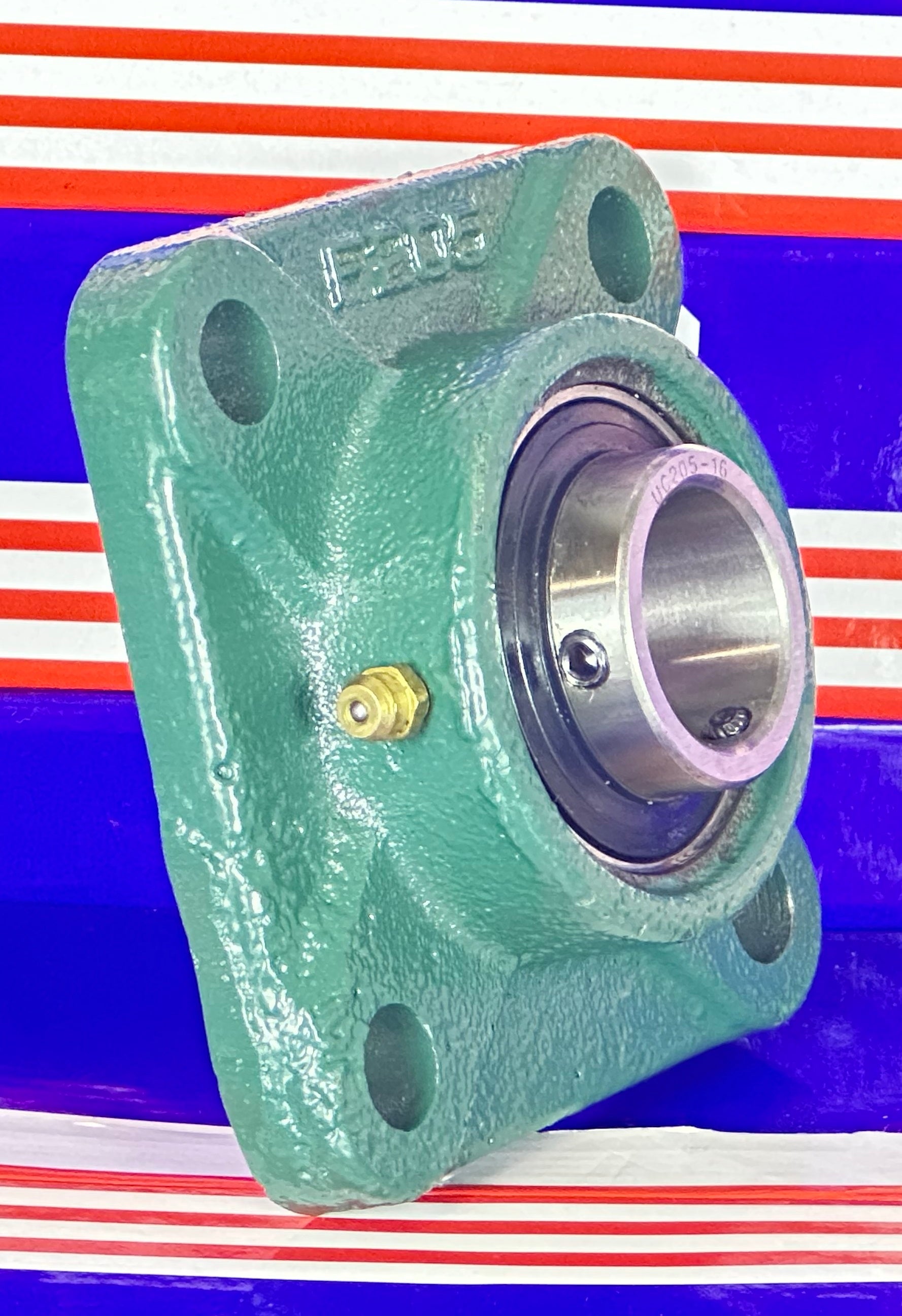

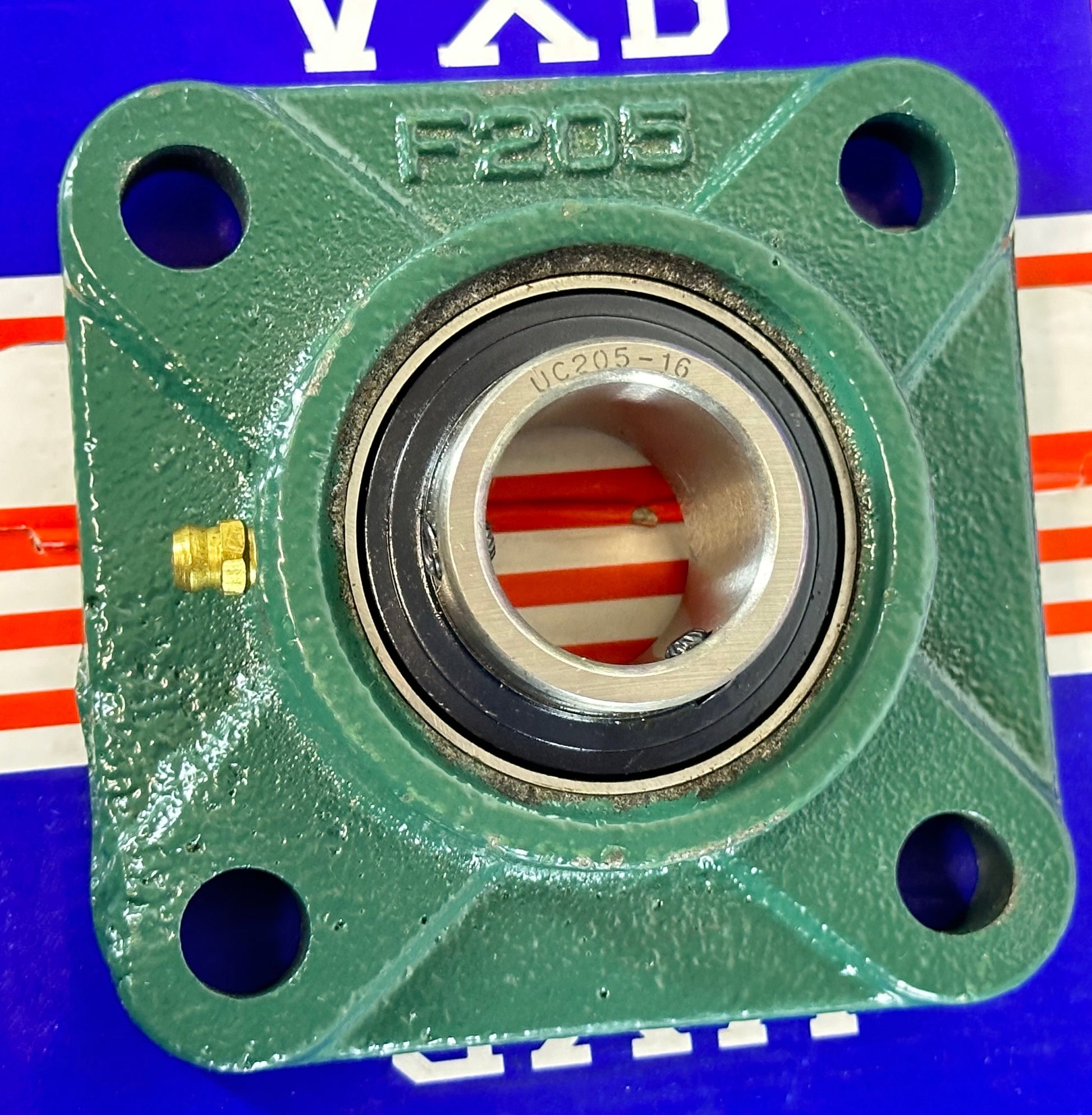

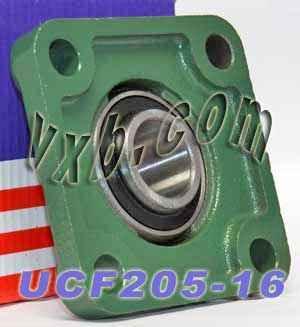

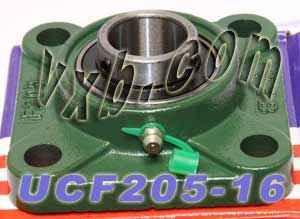

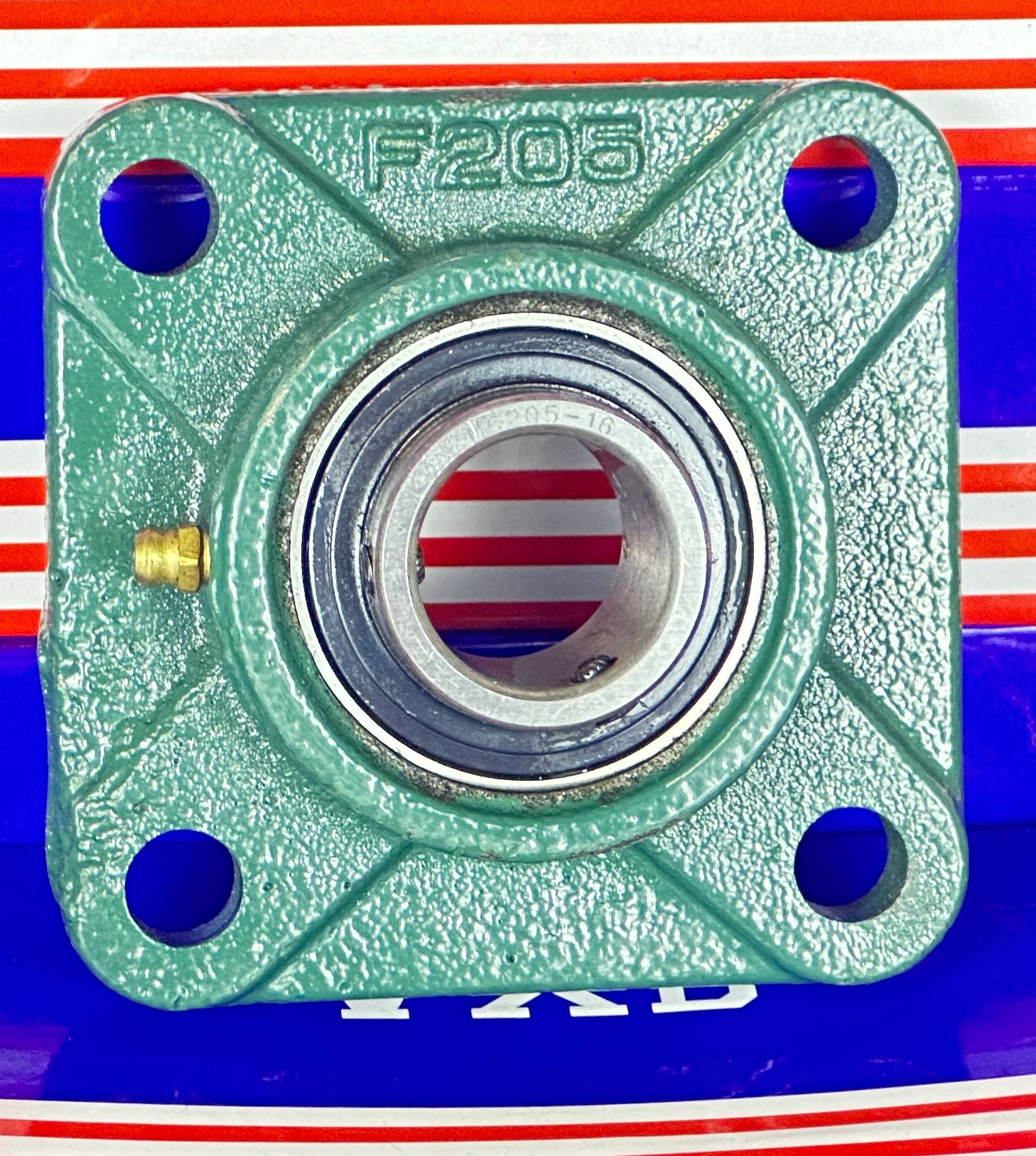

UCF205-16 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 1" inch
- Item: UCF205-16 Ball Bearing
- Type: Flange Mounted Bearing
- Bolt Size: 3/8" inch
- Shaft Diameter: 1" inch
- Basic Load (Cr): 14 KN
- Basic Load (Cor): 7.85 KN
- Bearing No: UC205-16
- Housing No: F205
- Quantity: One Bearing

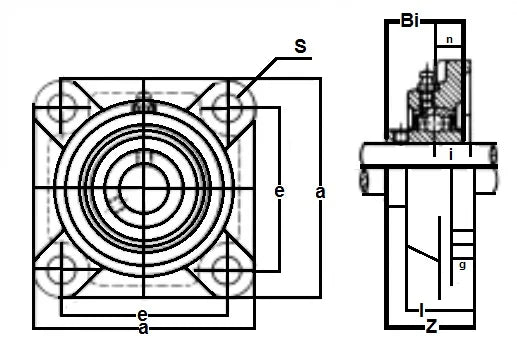

| Dimensions (inches) |
| a |
e |
i |
g |
l |
s |
z |
Bi |
n |
| 3-3/4" |
2-3/4" |
5/8" |
9/16" |
1-1/16" |
15/32" |
1-13/32" |
1.34" |
9/16" |
|
