20mm Round Flanged Long Bushing Linear Motion LBF20LUU

20mm Round Flanged Long Bushing Linear Motion LBF20LUU

$29.99 USD
$29.99 USD
Sale Sold out
LBF20LUU Round Flanged Linear Motion
Long Ball Bushing 20mm


LBF20LUU Round Flanged Linear Motion Long Ball Bushing, inner diameter is 20mm, outer diameter is 32mm, and length is 80mm.
  • Item: LBF20LUU Ball Bushing
  • Type: Flanged Linear Motion Ball Bushing
  • Inner Diameter: 20mm
  • Outer Diameter: 32mm
  • Length: 80mm
  • Dynamic load rating: 1400 N
  • Static load rating: 2740 N
  • Quantity: One Bearing

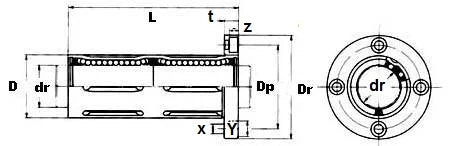

Major dimensions and tolerance (mm)
dr D L Flange
mm tolerance mm tolerance mm tolerance Df K t Dp X Y Z
20 0-12 32 0-19 80 300 54 42 8 43 5.5 9 5.1
