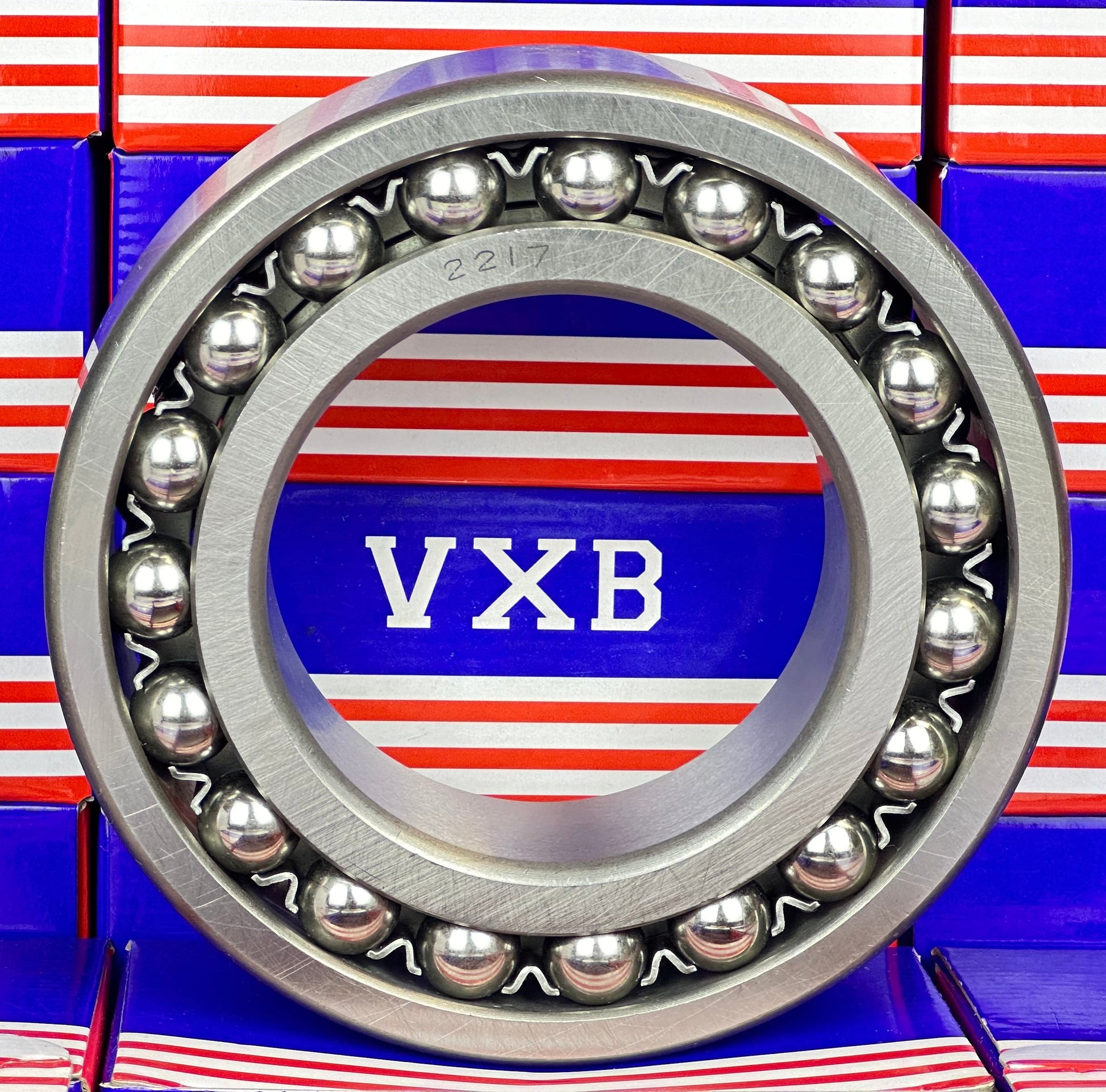

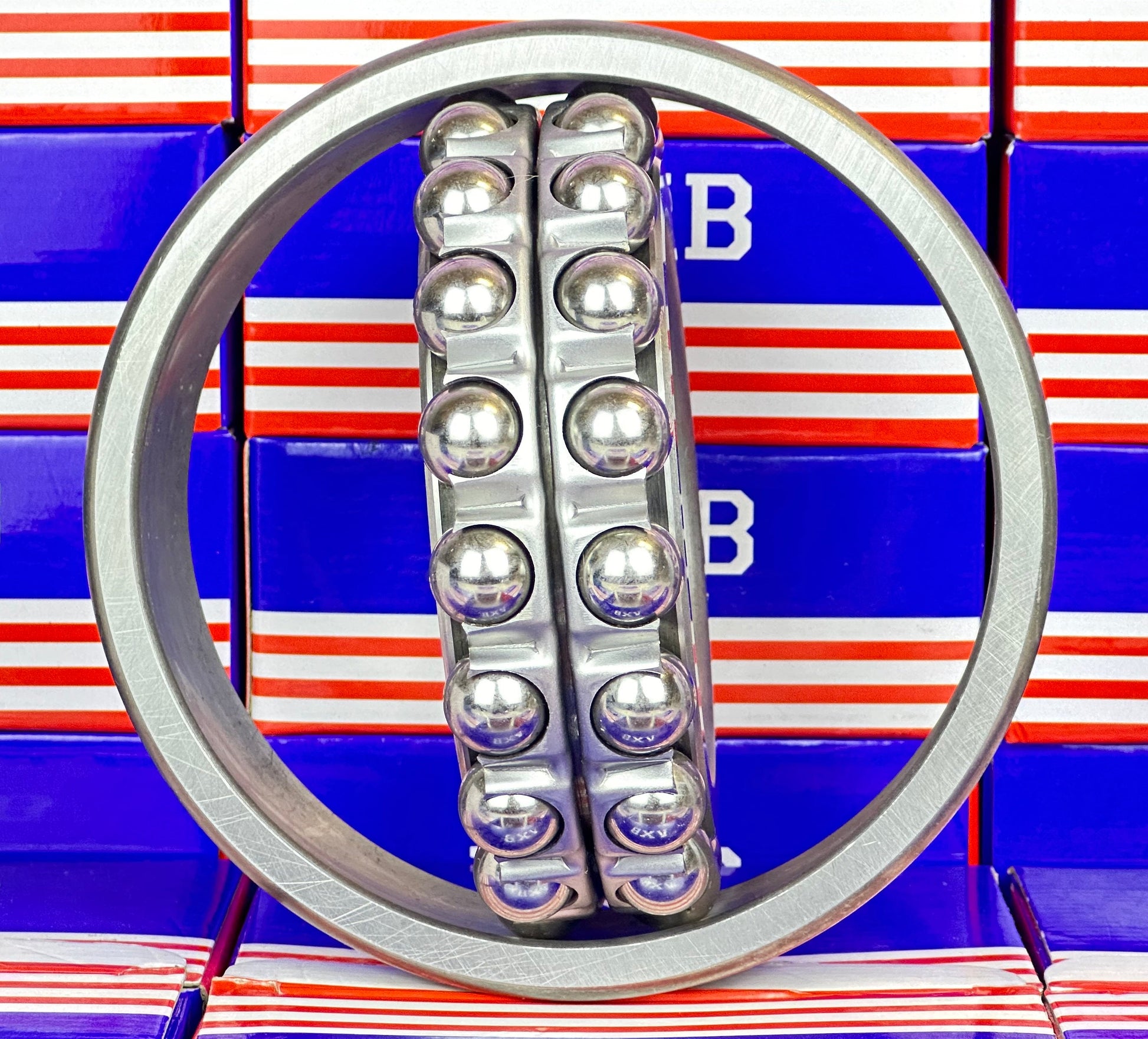

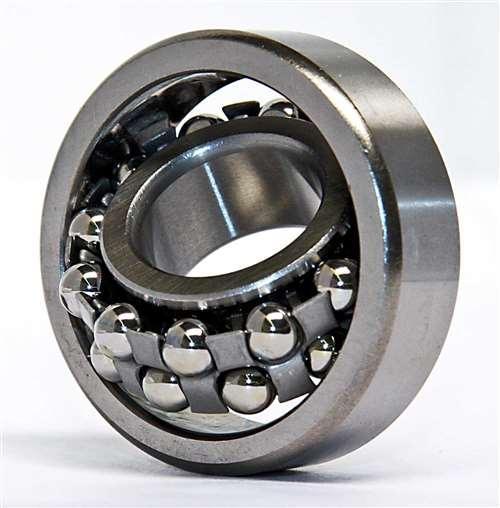

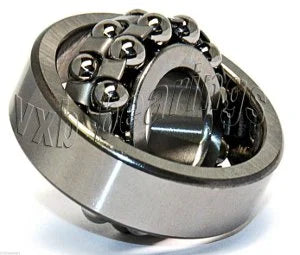

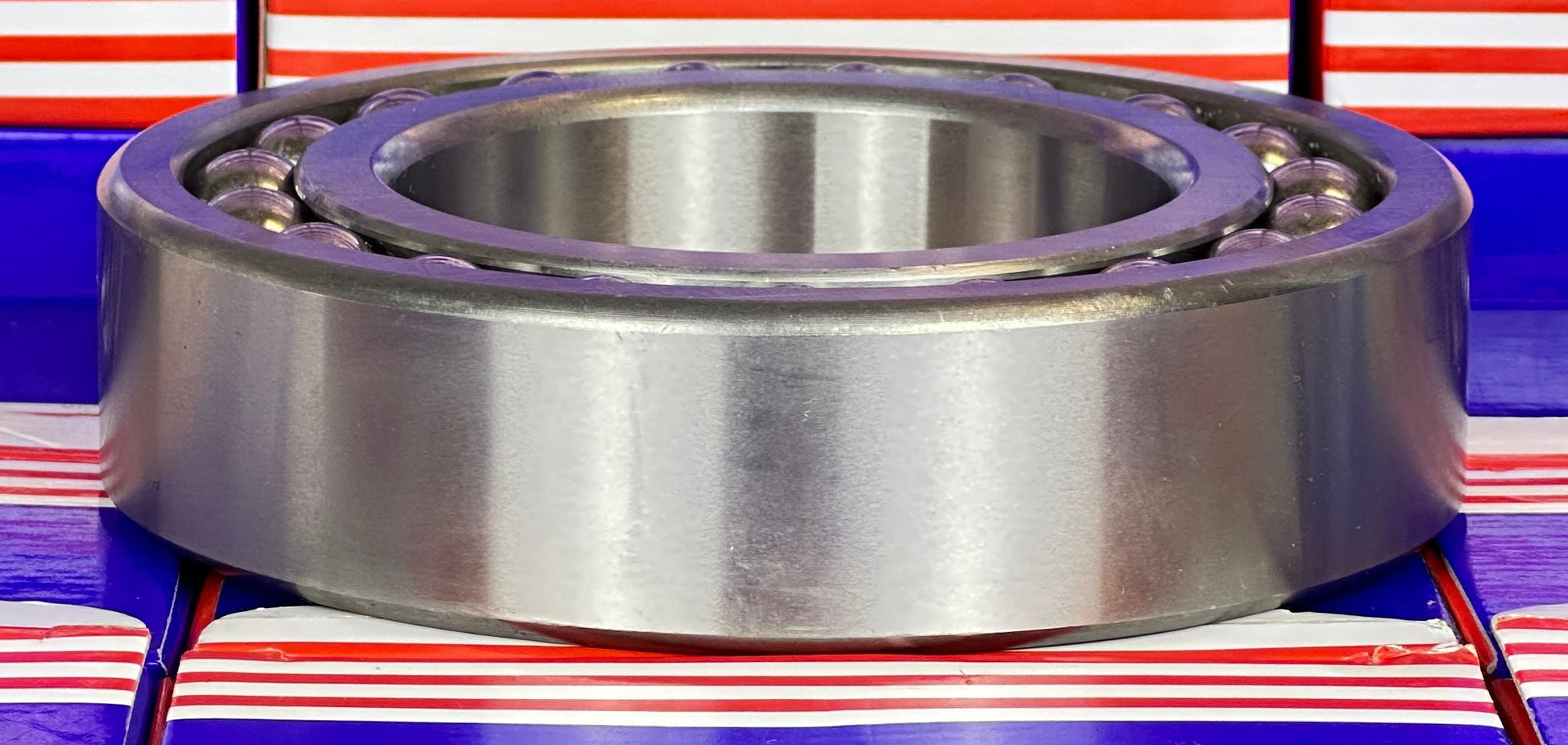

2217 Self Aligning Ball Bearing has a spherical outer ring raceway, the balls and cage continue to rotate, this type of bearings is suitable when the displacement of the centers around which the shaft and housing rotate and shaft deflection are likely to occur, Bearing is made of Chrome Steel.
- Item: 2217 Ball Bearing
- Type: Self Aligning Bearing
- Dimensions: 85mm x 150mm x 36mm/Metric
- Inner Diameter: 85mm
- Outer Diameter: 150mm
- Width: 36mm
- Size: 85 x 150 x 36 mm
- Quantity: One Bearing
- Dynamic load rating C: 58,300 N
- Static load rating Co: 23,600 N
- Limiting Speed:
- Grease Lubrication: 3,800 RPM
- Oil Lubrication: 4,600 RPM
|
