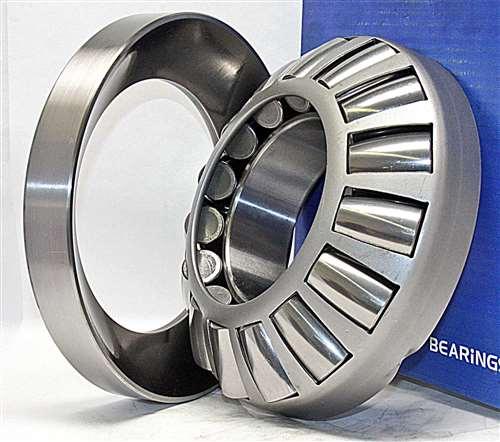

29456E Nachi Thrust Bearing Japan 280x520x145 Extra Spherical Bearings

29456E Nachi Thrust Bearing Japan 280x520x145 Extra Spherical Bearings

$14,094.99 USD
$14,094.99 USD
Sale Sold out
29456E Nachi Spherical Roller Bearing
Bronze Cage
Made in Japan

29456E Nachi Spherical Roller Bearing, Bronze Cage, Made in Japan, the 29456E inner diameter is 280mm, the 29456E outer diameter is 520mm and the 29456E width is 145mm.

  • Item: 29456E Roller Bearing
  • Type: Nachi Spherical Roller Bearing
  • Cage: Bronze Cage
  • Dimensions: 280mm x 520mm x 145mm/Metric
  • ID (inner diameter)/Bore: 280mm
  • OD (outer diameter): 520mm
  • Width/Height/thickness: 145mm
  • Size: 280 x 520 x 145 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 3,450,000 N
  • Static load rating Cor: 13,500,000 N
  • Limiting Speed:
    • Oil Lubrication: 580 RPM
  • Made in Japan

Nachi Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. Nachi Spherical Bearings have two designs, regular spherical roller bearings and spherical roller thrust bearings.
