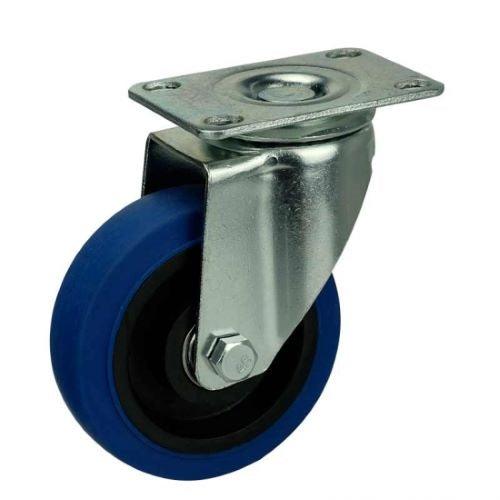

3" Inch Medium Duty Caster Wheel 176 pounds Swivel Thermoplastic Rubber Top Plate

3" Inch Caster Wheel 176 pounds Swivel Thermoplastic Rubber Top Plate

Item Name= VXB004075BTPR

Medium Duty

Wheel Diameter= 75mm

Wheel Width= 30mm

Wheel Diameter= 3" Inch = 75mm

Overall Height= 105mm

Overall Height Inch= 4.134"

Mounting Type= Top Plate

Top Plate Size= 93mm x 62mm

Hole distance= 45mm x 72mm

Wheel Core= Thermoplastic Rubber

Tire= Thermoplastic Rubber

Bearing type= Double ball bearing

Load Capacity= 176 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Moves large items quicker using the VXB004075BTPR. Diameter size of the caster wheel has a metric standard 75mm which is equal to 2.953" inch with imperial units. Dimensions of the caster wheel is 30mm (1.181" inch). Overall height of the wheel caster is 105mm = 4.134" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. The weehl core material is Thermoplastic Rubber and has a Thermoplastic Rubber tire with a low friction Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 176 lb with a Swivel type. Temperature range is -40 to 180 F. Very important notice, you need to buy the VXB004075BTPR in order to get one :).
