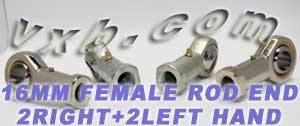

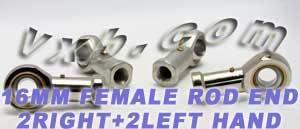

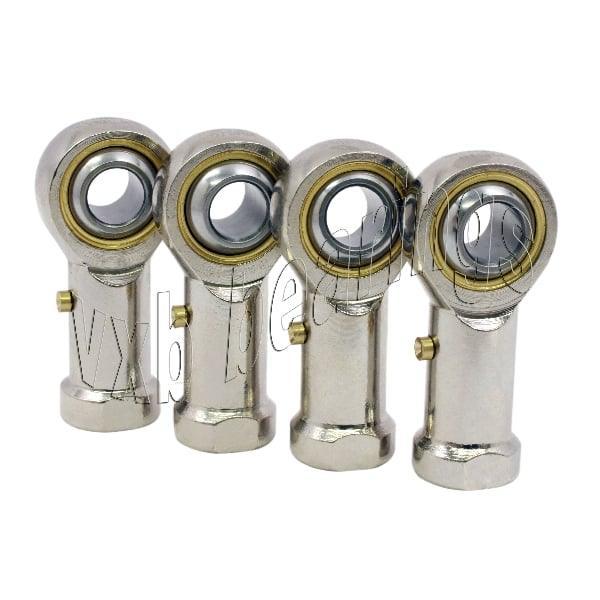

4 Female Rod Ends PHS16, 2 right hand and 2 left hand Work with 16 mm Shafts (5/8" inch), the inner diameter is 16mm and the internal thread size is M16x2, Here is the interchange designation in every brand:
- Item: PHS16 Bearings
- Type: Rod Ends Heim Joints Bearing
- Dynamic Load Rating: 2,140 KGF
- Static Load Rating: 2,590 KGF
- Quantity: Four Bearings
- ELGES: GIKFR 16 PB
- IKO: PHS 16
- HIRSCHMANN: SF 16
- Equal: SIKAC 16 M

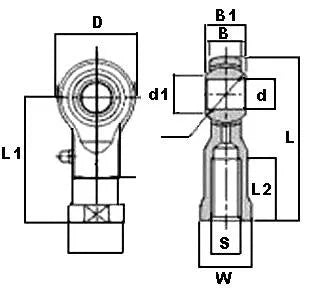

| Dimensions (mm) |
|---|
| d |
Thread
S |
D |
B |
B1 |
d1 |
L |
L1 |
L2 |
W |
| 16 |
M16x2 |
38 |
15 |
21 |
19.4 |
83 |
64 |
33 |
22 |
|
