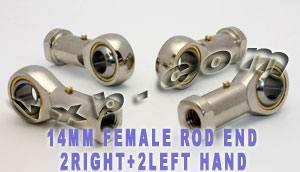

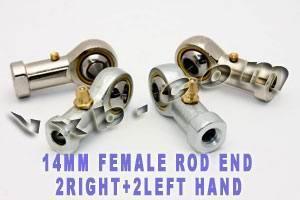

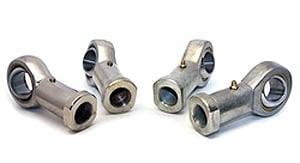

4 Female Rod Ends PHS14, 2 right hand and 2 left hand Work with 14 mm Shafts (0.55" inch), the inner diameter is 14 mm and the internal thread size is M14x2, Here is the interchange designation in every brand:
- Item: PHS14 Bearings
- Type: Rod Ends Heim Joints Bearing
- Dynamic Load Rating: 1710 KGF
- Quantity: Four Bearings
- Static Load Rating: 2130 KGF
- HIRSCHMANN: SF 14
- ELGES: GIKFR 14 PB
- Equal: SIKAC 14 M
- IKO: PHS 14

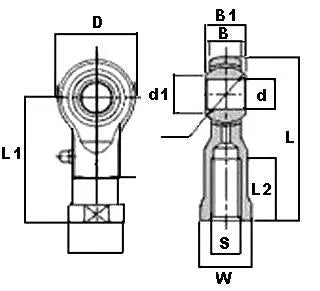

| Dimensions (mm) |
|---|
| d |
Thread
S |
D |
B |
B1 |
d1 |
L |
L1 |
L2 |
W |
| 14 |
M14x2 |
34 |
13.5 |
19 |
16.9 |
74 |
57 |
27 |
22 |
|
