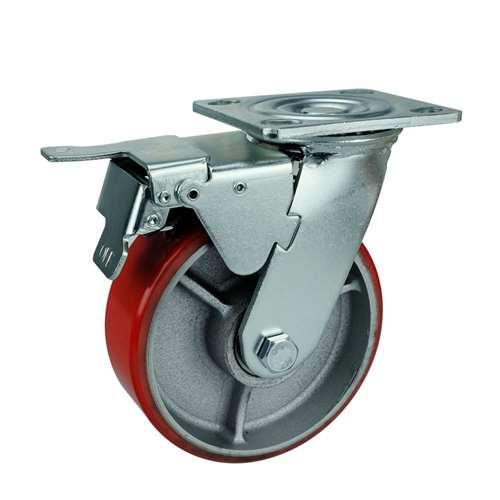

4" Inch Heavy Duty Caster Wheel 661 pounds Swivel and Upper Brake Cast Iron and Polyurethane Top Plate

4" Inch Caster Wheel 661 pounds Swivel and Upper Brake Cast Iron and Polyurethane Top Plate

Item Name= VXB005C100CPUB2

Heavy Duty

Wheel Diameter= 100mm

Wheel Width= 50mm

Wheel Diameter= 4" Inch = 100mm

Overall Height= 150mm

Overall Height Inch= 5.906"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm x 6mm

Hole distance= 72mm x 85mm

Wheel Core= Cast Iron and Polyurethane

Tire= Cast Iron and Polyurethane

Bearing type= Roller bearing

Load Capacity= 661 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Utilizing VXB005C100CPUB2 makes it feasible to pull and push items instead of transport And rolling on wheel that has 100mm diameter/3.937" inch. Dimensions of the caster wheel is 50mm (1.969" inch). Overall height of the wheel caster is 150mm = 5.906" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 115mm x 100mm x 6mm with the holes distance of 72mm x 85mm. The Roller bearing design will enable the Cast Iron and Polyurethane tire to roll easily with a core made of Cast Iron and Polyurethane. Bearing in mind that every caster wheel has the load capacity of 661 lb with a Swivel and Upper Brake type. The caster temperature range = -40 to 180 F. Buy the VXB005C100CPUB2 now, just add the quantity to basket and click on Checkout.
