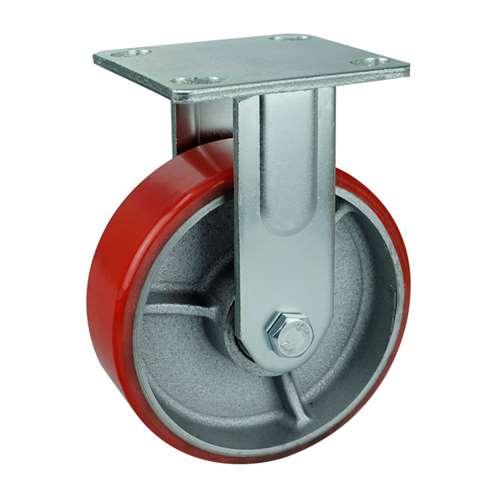

4" Inch Heavy Duty Caster Wheel 705 pounds Fixed Iron core and Polyurethane Top Plate

4" Inch Caster Wheel 705 pounds Fixed Iron core and Polyurethane Top Plate

Item Name= VXB005100CPUF

Heavy Duty

Wheel Diameter= 100mm

Wheel Width= 50mm

Wheel Diameter= 4" Inch = 100mm

Overall Height= 145mm

Overall Height Inch= 5.709"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Iron core and Polyurethane

Tire= Iron core and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 705 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Mounting VXB005100CPUF is the Low cost solution of making a project to move around by pushing or pulling. Diameter size of the caster wheel has a metric standard 100mm which is equal to 3.937" inch with imperial units. The wheel has a width of 50mm=1.969" inch. Overall height of the wheel caster is 145mm = 5.709" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 100mm x 115mm with the holes distance of 75mm x 85mm. The weehl core material is Iron core and Polyurethane and has a Iron core and Polyurethane tire with a low friction Double ball beaing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 705 lb with a Fixed type. Environment temperature range is -40 to 180 F. Buy the VXB005100CPUF now, just add the quantity to basket and click on Checkout.
