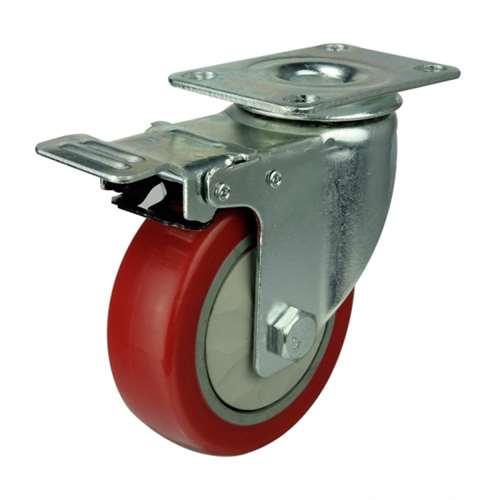

4" Inch Medium Duty Caster Wheel 154 pounds Swivel and Upper Brake Polyvinyl Chloride Top Plate

4" Inch Caster Wheel 154 pounds Swivel and Upper Brake Polyvinyl Chloride Top Plate

Item Name= VXB004100PVC1B

Medium Duty

Wheel Diameter= 100mm

Wheel Width= 30mm

Wheel Diameter= 4" Inch = 100mm

Overall Height= 130mm

Overall Height Inch= 5.118"

Mounting Type= Top Plate

Top Plate Size= 93mm x 62mm

Hole distance= 45mm x 72mm

Wheel Core= Polyvinyl Chloride

Tire= Polyvinyl Chloride

Bearing type= Ball bearing

Load Capacity= 154 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Moves large items quicker using the VXB004100PVC1B. And rolling on wheel that has 100mm diameter/3.937" inch. The thickness of the wheel is 30mm or 1.181" inch. Overall height of the wheel caster is 130mm = 5.118" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. Low drag was achieved by a Polyvinyl Chloride core on a Polyvinyl Chloride tire spinning freely with a Ball bearing. Each caster will carry the load of 154 lb and is Swivel and Upper Brake type. Environment temperature range is -40 to 180 F. Buy our VXB004100PVC1B, we wish all the best.
