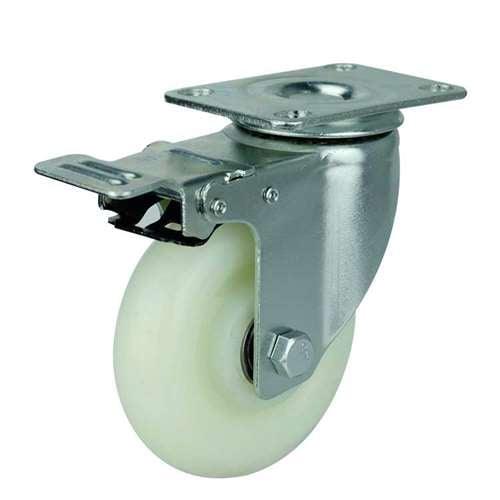

4" Inch Medium Duty Caster Wheel 198 pounds Swivel and Upper Brake Polypropylene Top Plate

4" Inch Caster Wheel 198 pounds Swivel and Upper Brake Polypropylene Top Plate

Item Name= VXB004100PPB

Medium Duty

Wheel Diameter= 100mm

Wheel Width= 30mm

Wheel Diameter= 4" Inch = 100mm

Overall Height= 130mm

Overall Height Inch= 5.118"

Mounting Type= Top Plate

Top Plate Size= 93mm x 62mm

Hole distance= 45mm x 72mm

Wheel Core= Polypropylene

Tire= Polypropylene

Bearing type= Double ball bearing

Load Capacity= 198 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Mounting VXB004100PPB is the Low cost solution of making a project to move around by pushing or pulling. The wheel diameter is 100mm or 3.937" inch in inches. The wheel has a width of 30mm=1.181" inch. The caster dimensions heightwise is 130mm/5.118" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 45mm x 72mm. Low drag was achieved by a Polypropylene core on a Polypropylene tire spinning freely with a Double ball bearing. Each caster will carry the load of 198 lb and is Swivel and Upper Brake type. Environment temperature range is -40 to 180 F. Buy the VXB004100PPB now, just add the quantity to basket and click on Checkout.
