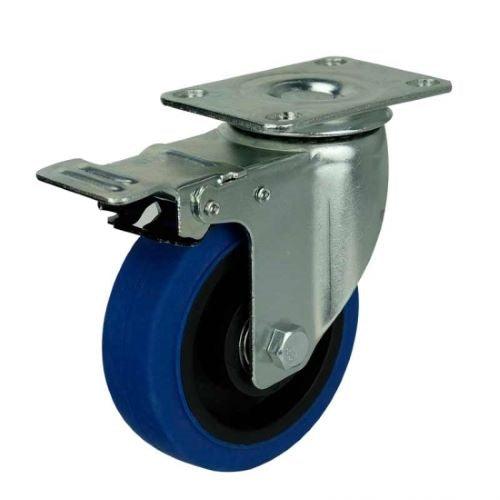

4" Inch Medium Duty Caster Wheel 198 pounds Swivel and Upper Brake Thermoplastic Rubber Top Plate

4" Inch Caster Wheel 198 pounds Swivel and Upper Brake Thermoplastic Rubber Top Plate

Item Name= VXB004100BTPRB

Medium Duty

Wheel Diameter= 100mm

Wheel Width= 30mm

Wheel Diameter= 4" Inch = 100mm

Overall Height= 130mm

Overall Height Inch= 5.118"

Mounting Type= Top Plate

Top Plate Size= 93mm x 62mm

Hole distance= 45mm x 72mm

Wheel Core= Thermoplastic Rubber

Tire= Thermoplastic Rubber

Bearing type= Double ball bearing

Load Capacity= 198 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Heavy weight capability and Durability made the wheel casters like the VXB004100BTPRB a must use, get your do it yourself object move around. The wheel diameter is 100mm or 3.937" inch in inches. The wheel has a width of 30mm=1.181" inch. Overall height of the wheel caster is 130mm = 5.118" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 45mm x 72mm. The Double ball bearing design will enable the Thermoplastic Rubber tire to roll easily with a core made of Thermoplastic Rubber. Each caster will carry the load of 198 lb and is Swivel and Upper Brake type. The caster temperature range = -40 to 180 F. Very important notice, you need to buy the VXB004100BTPRB in order to get one :).
