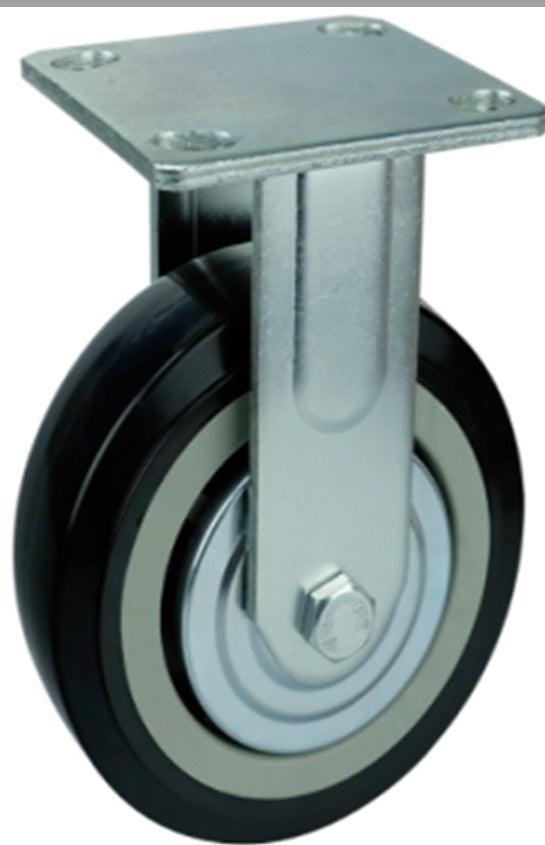

5" Inch Heavy Duty Caster Wheel 507 pounds Fixed Polyvinyl Chloride Top Plate

5" Inch Caster Wheel 507 pounds Fixed Polyvinyl Chloride Top Plate

Item Name= VXB005125BPVC1F

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 166mm

Overall Height Inch= 6.535"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Polyvinyl Chloride

Tire= Polyvinyl Chloride

Bearing type= Double ball beaing

Load Capacity= 507 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Make your life easier, have big objects easier to Maneuver using the VXB005125BPVC1F Wheel Caster. And rolling on wheel that has 125mm diameter/4.921" inch. The thickness of the wheel is 50mm or 1.969" inch. Overall height of the wheel caster is 166mm = 6.535" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 100mm x 115mm with the holes distance of 75mm x 85mm. The Double ball beaing design will enable the Polyvinyl Chloride tire to roll easily with a core made of Polyvinyl Chloride. Each caster will carry the load of 507 lb and is Fixed type. Temperature range is -40 to 180 F. Buy the VXB005125BPVC1F now, just add the quantity to basket and click on Checkout.
