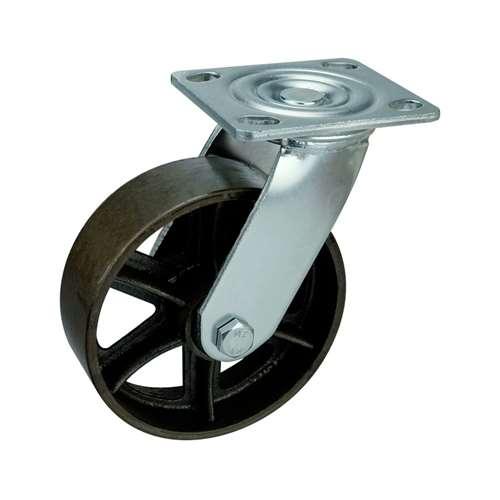

5" Inch Heavy Duty Caster Wheel 507 pounds Swivel Black Cast iron Top Plate

5" Inch Caster Wheel 507 pounds Swivel Black Cast iron Top Plate

Item Name= VXB005125BC

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 167mm

Overall Height Inch= 6.575"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Black Cast iron

Tire= Black Cast iron

Bearing type= Roller bearing

Load Capacity= 507 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Minimization of possible untoward effects on operator by installing VXB005125BC just ask your operator to push and pull, but not carry. Diameter size of the caster wheel has a metric standard 125mm which is equal to 4.921" inch with imperial units. Dimensions of the caster wheel is 50mm (1.969" inch). The caster dimensions heightwise is 167mm/6.575" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 100mm x 115mm with the holes distance of 75mm x 85mm. The Roller bearing design will enable the Black Cast iron tire to roll easily with a core made of Black Cast iron. Each caster will carry the load of 507 lb and is Swivel type. Environment temperature range is -40 to 180 F. Buy the VXB005125BC now, just add the quantity to basket and click on Checkout.
