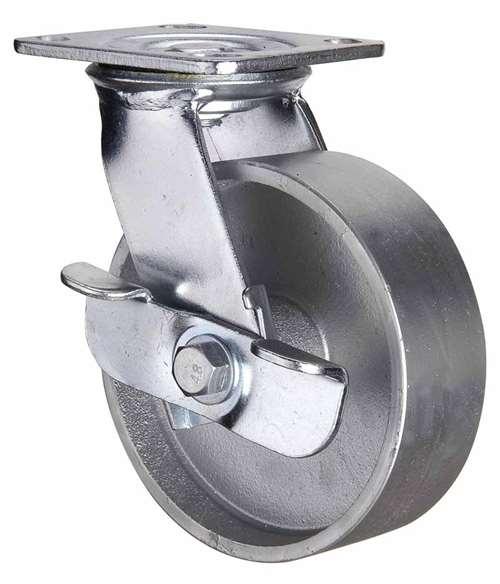

5" Inch Heavy Duty Caster Wheel 617 pounds Swivel and Center Brake Cast Iron Top Plate

5" Inch Caster Wheel 617 pounds Swivel and Center Brake Cast Iron Top Plate

Item Name= VXB005125WCB1

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 166mm

Overall Height Inch= 6.535"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm x 5.5mm

Hole distance= 72mm x 85mm

Wheel Core= Cast Iron

Tire= Cast Iron

Bearing type= Roller bearing

Load Capacity= 617 lb

Mounting= Swivel and Center Brake

Temperature Range= -40 to 180 F

Make your life easier, have big objects easier to Maneuver using the VXB005125WCB1 Wheel Caster. Diameter size of the caster wheel has a metric standard 125mm which is equal to 4.921" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 166mm/6.535" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 115mm x 100mm x 5.5mm and holes distance of 72mm x 85mm. The weehl core material is Cast Iron and has a Cast Iron tire with a low friction Roller bearing. Bearing in mind that every caster wheel has the load capacity of 617 lb with a Swivel and Center Brake type. Environment temperature range is -40 to 180 F. Buy the VXB005125WCB1 now, just add the quantity to basket and click on Checkout.
