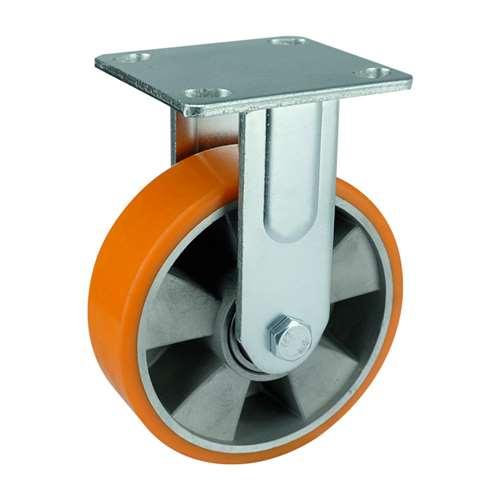

5" Inch Heavy Duty Caster Wheel 772 pounds Fixed Aluminum and Polyurethane Top Plate

5" Inch Caster Wheel 772 pounds Fixed Aluminum and Polyurethane Top Plate

Item Name= VXB005125BAPUF

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 164mm

Overall Height Inch= 6.457"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm

Hole distance= 72mm x 85mm

Wheel Core= Aluminum and Polyurethane

Tire= Aluminum and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 772 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Moves large items quicker using the VXB005125BAPUF. The wheel diameter is 125mm or 4.921" inch in inches. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 164mm/6.457" inch. Mounted via a Top Plate that has the size of 115mm x 100mm and the holes distance of 72mm x 85mm. This caster wheel core material is Aluminum and Polyurethane and has a Aluminum and Polyurethane tire spinning over Double ball beaing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 772 lb with a Fixed type. Temperature range is -40 to 180 F. Buy the VXB005125BAPUF now, just add the quantity to basket and click on Checkout.
