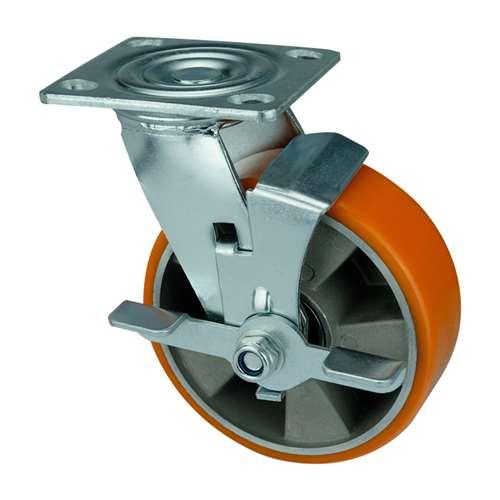

5" Inch Heavy Duty Caster Wheel 772 pounds Side Brake Aluminum and Polyurethane Top Plate

5" Inch Caster Wheel 772 pounds Side Brake Aluminum and Polyurethane Top Plate

Item Name= VXB005125BAPUB1

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 164mm

Overall Height Inch= 6.457"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm

Hole distance= 72mm x 85mm

Wheel Core= Aluminum and Polyurethane

Tire= Aluminum and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 772 lb

Mounting= Side Brake

Temperature Range= -40 to 180 F

Minimization of possible untoward effects on operator by installing VXB005125BAPUB1 just ask your operator to push and pull, but not carry. And rolling on wheel that has 125mm diameter/4.921" inch. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 164mm/6.457" inch. Mounted via a Top Plate that has the size of 115mm x 100mm and the holes distance of 72mm x 85mm. The Double ball beaing design will enable the Aluminum and Polyurethane tire to roll easily with a core made of Aluminum and Polyurethane. Each caster will carry the load of 772 lb and is Side Brake type. The caster temperature range = -40 to 180 F. Buy our VXB005125BAPUB1, we wish all the best.
