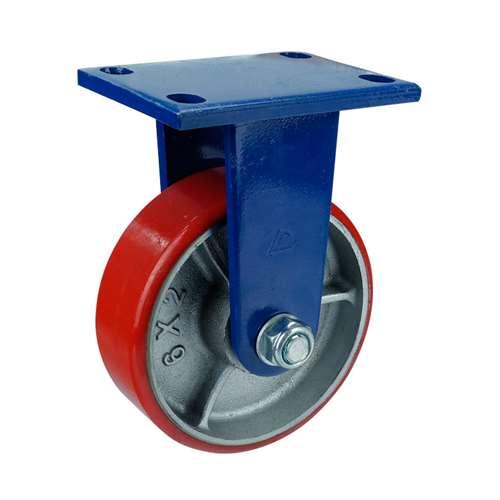

5" Inch Heavy Duty Caster Wheel 882 pounds Fixed Cast iron polyurethane Top Plate

5" Inch Caster Wheel 882 pounds Fixed Cast iron polyurethane Top Plate

Item Name= VXB009125BCPUF

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 195mm

Overall Height Inch= 7.677"

Mounting Type= Top Plate

Top Plate Size= 138mm x 110mm x 10mm

Hole distance= 110mm x 75mm

Wheel Core= Cast iron polyurethane

Tire= Cast iron polyurethane

Bearing type= Precision double ball bearing

Load Capacity= 882 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Make your life easier, have big objects easier to Maneuver using the VXB009125BCPUF Wheel Caster. And rolling on wheel that has 125mm diameter/4.921" inch. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 195mm/7.677" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 138mm x 110mm x 10mm with the holes distance of 110mm x 75mm. The Precision double ball bearing design will enable the Cast iron polyurethane tire to roll easily with a core made of Cast iron polyurethane. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 882 lb with a Fixed type. The caster temperature range = -40 to 180 F. Buy the VXB009125BCPUF now, just add the quantity to basket and click on Checkout.
