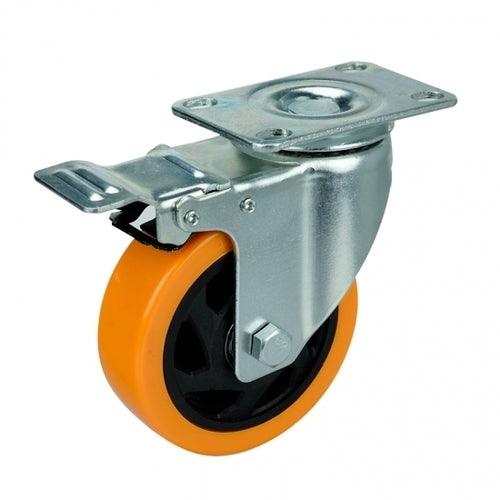

5" Inch Medium Duty Caster Wheel 176 pounds Swivel and Upper Brake Polyvinyl Chloride Top Plate

5" Inch Caster Wheel 176 pounds Swivel and Upper Brake Polyvinyl Chloride Top Plate

Item Name= VXB004125HPVCB

Medium Duty

Wheel Diameter= 125mm

Wheel Width= 30mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 155mm

Overall Height Inch= 6.102"

Mounting Type= Top Plate

Top Plate Size= 93mm x 62mm

Hole distance= 45mm x 72mm

Wheel Core= Polyvinyl Chloride

Tire= Polyvinyl Chloride

Bearing type= Double ball bearing

Load Capacity= 176 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Tens of thousands of different kinds to select from to have your office Desk/chair sliding easily right and left, install the VXB004125HPVCB. And rolling on wheel that has 125mm diameter/4.921" inch. Dimensions of the caster wheel is 30mm (1.181" inch). The caster dimensions heightwise is 155mm/6.102" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 93mm x 62mm with the holes distance of 45mm x 72mm. The weehl core material is Polyvinyl Chloride and has a Polyvinyl Chloride tire with a low friction Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 176 lb with a Swivel and Upper Brake type. Environment temperature range is -40 to 180 F. Buy our VXB004125HPVCB, we wish all the best.
