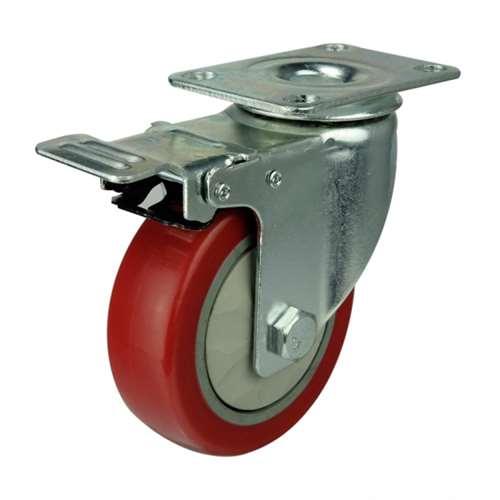

5" Inch Medium Duty Caster Wheel 176 pounds Swivel and Upper Brake Polyvinyl Chloride Top Plate

5" Inch Caster Wheel 176 pounds Swivel and Upper Brake Polyvinyl Chloride Top Plate

Item Name= VXB004125PVC1B

Medium Duty

Wheel Diameter= 125mm

Wheel Width= 30mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 155mm

Overall Height Inch= 6.102"

Mounting Type= Top Plate

Top Plate Size= 93mm x 62mm

Hole distance= 45mm x 72mm

Wheel Core= Polyvinyl Chloride

Tire= Polyvinyl Chloride

Bearing type= Ball bearing

Load Capacity= 176 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Heavy weight capability and Durability made the wheel casters like the VXB004125PVC1B a must use, get your do it yourself object move around. Diameter size of the caster wheel has a metric standard 125mm which is equal to 4.921" inch with imperial units. The thickness of the wheel is 30mm or 1.181" inch. Overall height of the wheel caster is 155mm = 6.102" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. This caster wheel core material is Polyvinyl Chloride and has a Polyvinyl Chloride tire spinning over Ball bearing. Each caster will carry the load of 176 lb and is Swivel and Upper Brake type. Temperature range is -40 to 180 F. Buy our VXB004125PVC1B, we wish all the best.
