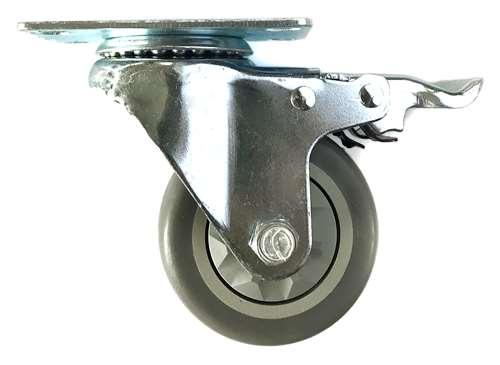

5" Inch Medium Duty Caster Wheel 220 pounds Swivel and Upper Brake Thermoplastic Rubber Top Plate

5" Inch Caster Wheel 220 pounds Swivel and Upper Brake Thermoplastic Rubber Top Plate

Item Name= VXB004125TPR1B

Medium Duty

Wheel Diameter= 125mm

Wheel Width= 30mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 155mm

Overall Height Inch= 6.102"

Mounting Type= Top Plate

Top Plate Size= 93mm x 62mm

Hole distance= 73mm x 45mm

Wheel Core= Thermoplastic Rubber

Tire= Thermoplastic Rubber

Bearing type= Ball bearing

Load Capacity= 220 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Make your life easier, have big objects easier to Maneuver using the VXB004125TPR1B Wheel Caster. And rolling on wheel that has 125mm diameter/4.921" inch. The thickness of the wheel is 30mm or 1.181" inch. The Caster with the wheel from end to end is 155mm = 6.102" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 93mm x 62mm with the holes distance of 73mm x 45mm. The Ball bearing design will enable the Thermoplastic Rubber tire to roll easily with a core made of Thermoplastic Rubber. Each caster will carry the load of 220 lb and is Swivel and Upper Brake type. Environment temperature range is -40 to 180 F. Very important notice, you need to buy the VXB004125TPR1B in order to get one :).
