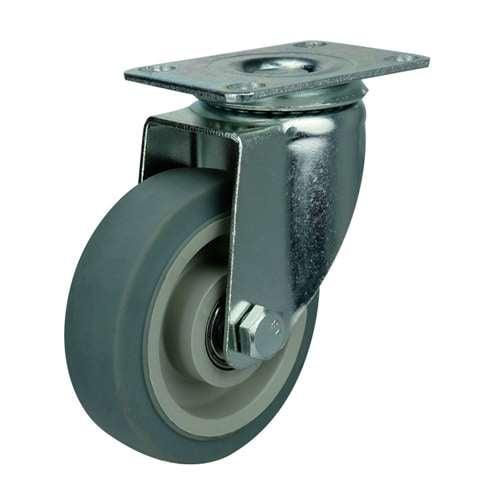

5" Inch Medium Duty Caster Wheel 220 pounds Swivel Thermoplastic Rubber Top Plate

5" Inch Caster Wheel 220 pounds Swivel Thermoplastic Rubber Top Plate

Item Name= VXB004125TPR

Medium Duty

Wheel Diameter= 125mm

Wheel Width= 30mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 155mm

Overall Height Inch= 6.102"

Mounting Type= Top Plate

Top Plate Size= 93mm x 62mm

Hole distance= 45mm x 72mm

Wheel Core= Thermoplastic Rubber

Tire= Thermoplastic Rubber

Bearing type= Double ball bearing

Load Capacity= 220 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Make your life easier, have big objects easier to Maneuver using the VXB004125TPR Wheel Caster. Diameter size of the caster wheel has a metric standard 125mm which is equal to 4.921" inch with imperial units. The thickness of the wheel is 30mm or 1.181" inch. Overall height of the wheel caster is 155mm = 6.102" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 93mm x 62mm with the holes distance of 45mm x 72mm. The Double ball bearing design will enable the Thermoplastic Rubber tire to roll easily with a core made of Thermoplastic Rubber. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 220 lb with a Swivel type. Temperature range is -40 to 180 F. Buy our VXB004125TPR, we wish all the best.
