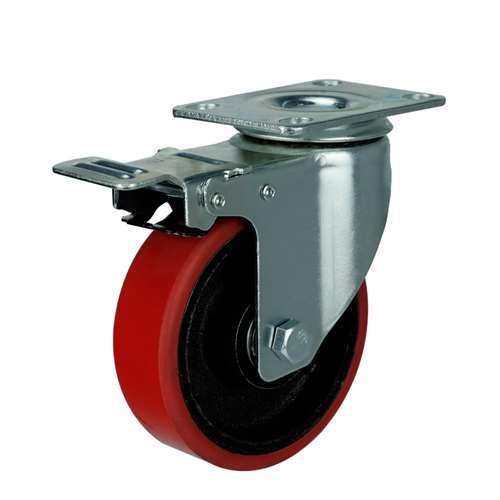

5" Inch Medium Duty Caster Wheel 331 pounds Swivel and Upper Brake Iron and Polyurethane Top Plate

5" Inch Caster Wheel 331 pounds Swivel and Upper Brake Iron and Polyurethane Top Plate

Item Name= VXB004125CPUB

Medium Duty

Wheel Diameter= 125mm

Wheel Width= 32mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 156mm

Overall Height Inch= 6.142"

Mounting Type= Top Plate

Top Plate Size= 93mm x 62mm

Hole distance= 45mm x 72mm

Wheel Core= Iron and Polyurethane

Tire= Iron and Polyurethane

Bearing type= Double ball bearing

Load Capacity= 331 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Mounting VXB004125CPUB is the Low cost solution of making a project to move around by pushing or pulling. The wheel diameter is 125mm or 4.921" inch in inches. The wheel has a width of 32mm=1.260" inch. The caster dimensions heightwise is 156mm/6.142" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 93mm x 62mm with the holes distance of 45mm x 72mm. Low drag was achieved by a Iron and Polyurethane core on a Iron and Polyurethane tire spinning freely with a Double ball bearing. Each caster will carry the load of 331 lb and is Swivel and Upper Brake type. Temperature range is -40 to 180 F. Buy our VXB004125CPUB, we wish all the best.
