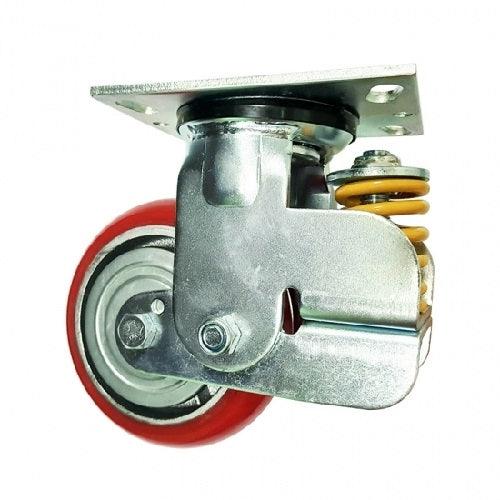

5" Inch spring loaded Caster Wheel 617 pounds Swivel Polyurethane and Cast iron core Top Plate

5" Inch Caster Wheel 617 pounds Swivel Polyurethane and Cast iron core Top Plate

Item Name= VXB013125WBCPU

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 210mm

Overall Height Inch= 8.268"

Mounting Type= Top Plate

Top Plate Size= 140mm x 108mm

Hole distance= 105mm x 75mm

Wheel Core= Polyurethane and Cast iron core

Tire= Polyurethane and Cast iron core

Bearing type= Ball bearing

Load Capacity= 617 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

Moves large items quicker using the VXB013125WBCPU. Diameter size of the caster wheel has a metric standard 125mm which is equal to 4.921" inch with imperial units. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 210mm/8.268" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 140mm x 108mm with the holes distance of 105mm x 75mm. Low drag was achieved by a Polyurethane and Cast iron core core on a Polyurethane and Cast iron core tire spinning freely with a Ball bearing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 617 lb with a Swivel type. Temperature range is -40 to 180 F. Buy our VXB013125WBCPU, we wish all the best.
