Nachi

5200 Nachi 2 Rows Angular Contact Bearing 10x30x14.3 Japan Bearings

5200 Nachi 2 Rows Angular Contact Bearing 10x30x14.3 Japan Bearings

$49.99 USD
$49.99 USD
Sale Sold out
 More payment options

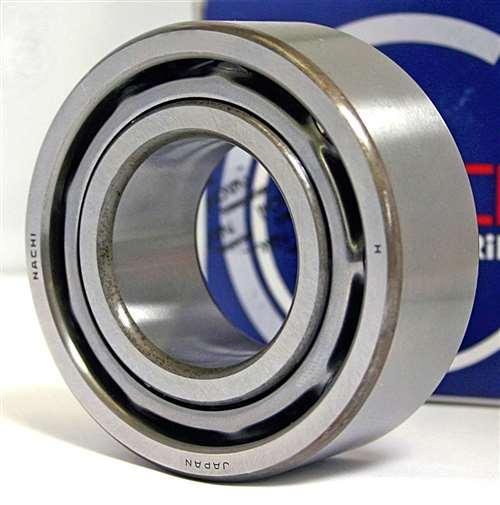

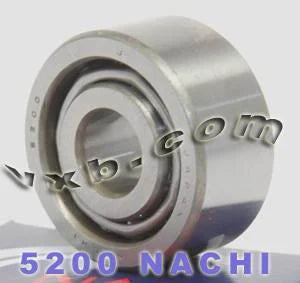

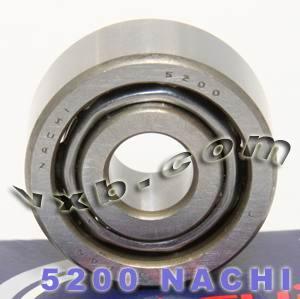

5200 Nachi Angular Ball Bearing
10mm x 30mm x 14.3mm
Made in Japan

5200 Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 10mm, outer diameter is 30mm and width is 14.3mm.

  • Item: 5200 Angular Ball Bearing
  • Type: Nachi Double Row Angular Ball Bearing
  • Closures: Open
  • Dimensions: 10mm x 30mm x 14.3mm/Metric
  • ID (inner diameter)/Bore: 10mm
  • OD (outer diameter): 30mm
  • Width/Height/thickness: 14.3mm
  • Size: 10 x 30 x 14.3 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 7,300 N
  • Static load rating Cor: 4,000 N
  • Limiting Speed:
    • Grease Lubrication: 18,000 RPM
    • Oil Lubrication: 24,000 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
