Nachi

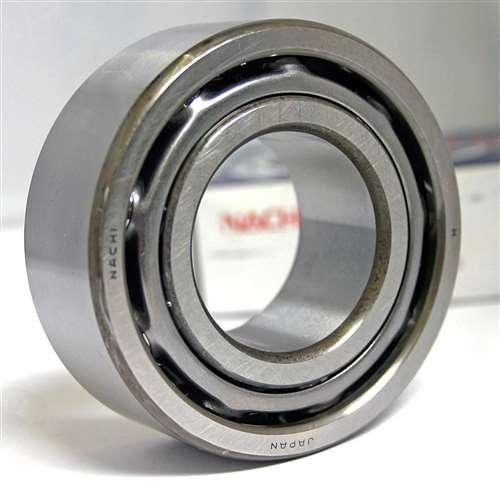

5213 Nachi 2 Rows Angular Contact Bearing Japan 65x120x38.1 Bearings

5213 Nachi 2 Rows Angular Contact Bearing Japan 65x120x38.1 Bearings

$248.99 USD
$248.99 USD
Sale Sold out
5213 Nachi Angular Ball Bearing
65mm x 120mm x 38.1mm
Made in Japan

5213 Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 65mm, outer diameter is 120mm and width is 38.1mm.

  • Item: 5213 Nachi Ball Bearing
  • Type: Nachi Double Row Angular Ball Bearing
  • Closures: Open
  • Dimensions: 65mm x 120mm x 38.1mm/Metric
  • ID (inner diameter)/Bore: 65mm
  • OD (outer diameter): 120mm
  • Width/Height/thickness: 38.1mm
  • Size: 65 x 120 x 38.1 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 89,000 N
  • Static load rating Cor: 77,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,900 RPM
    • Oil Lubrication: 5,300 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
