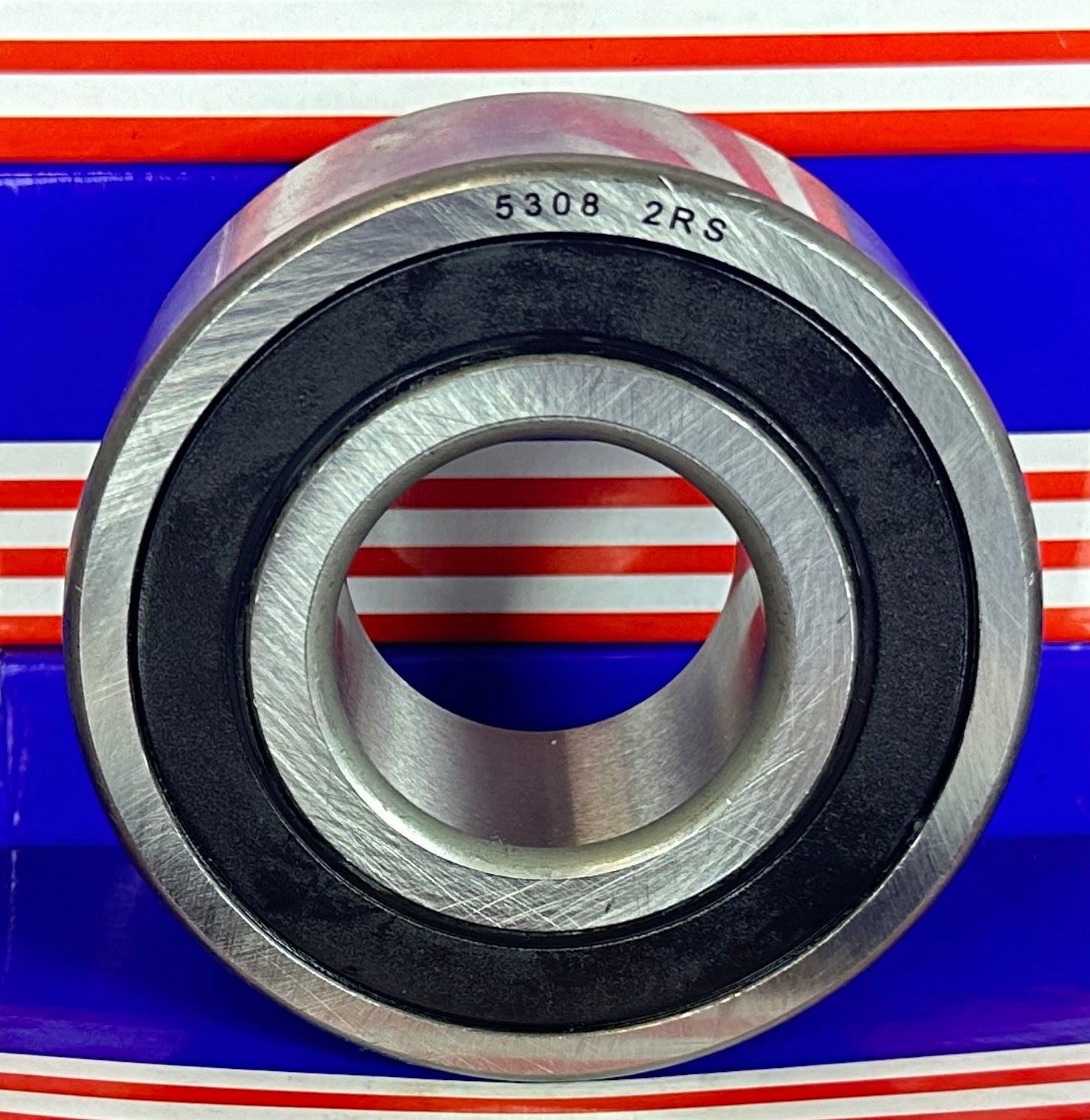

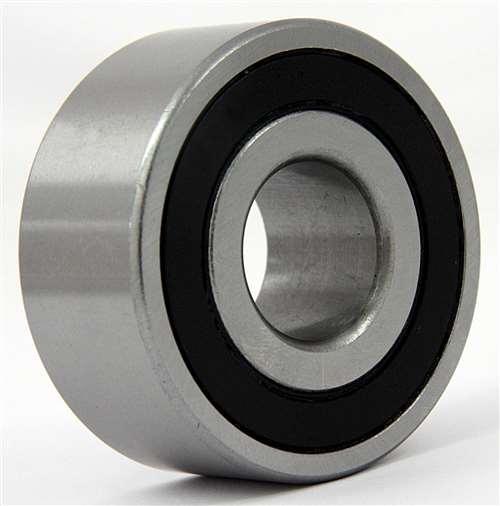

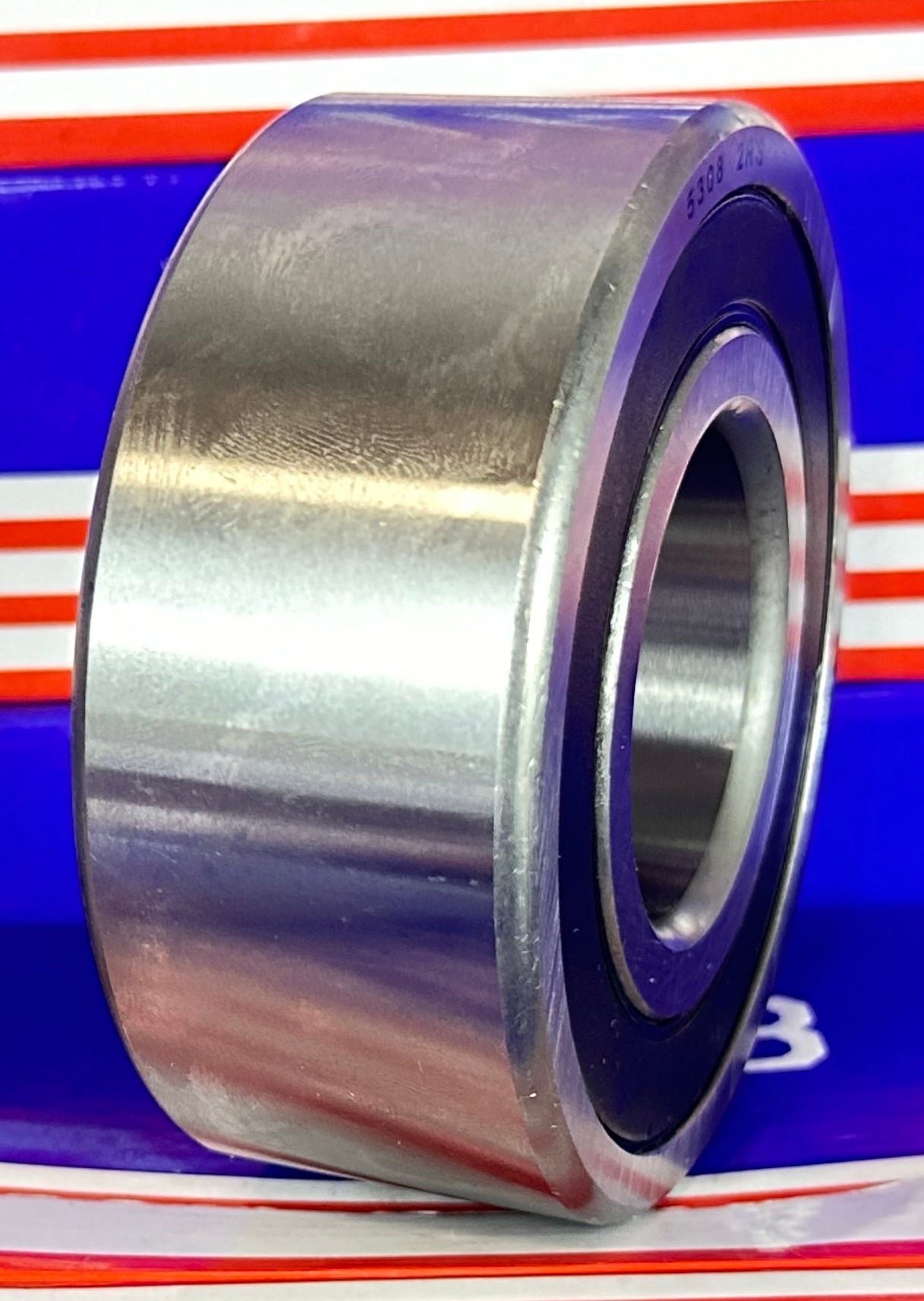

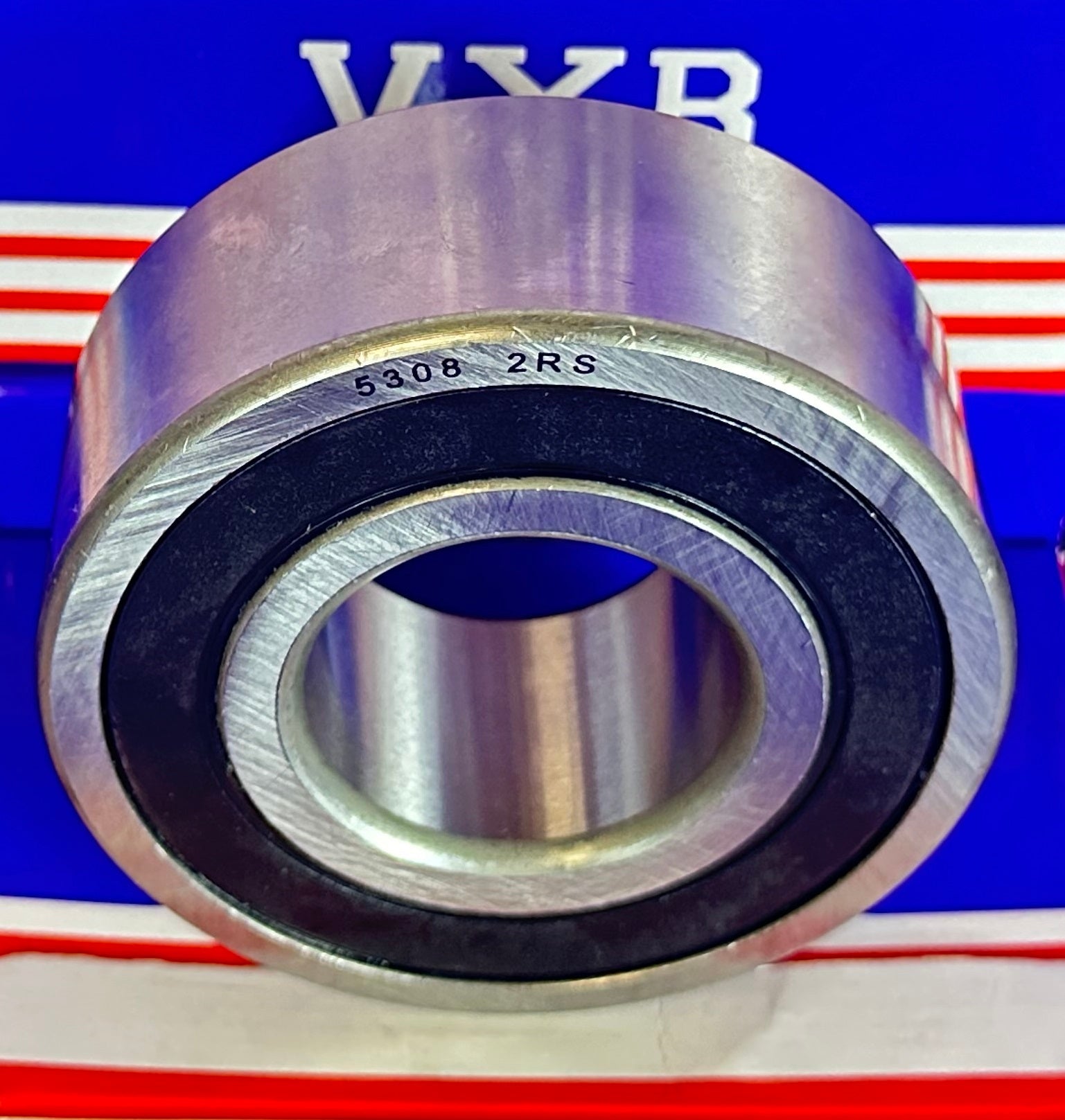

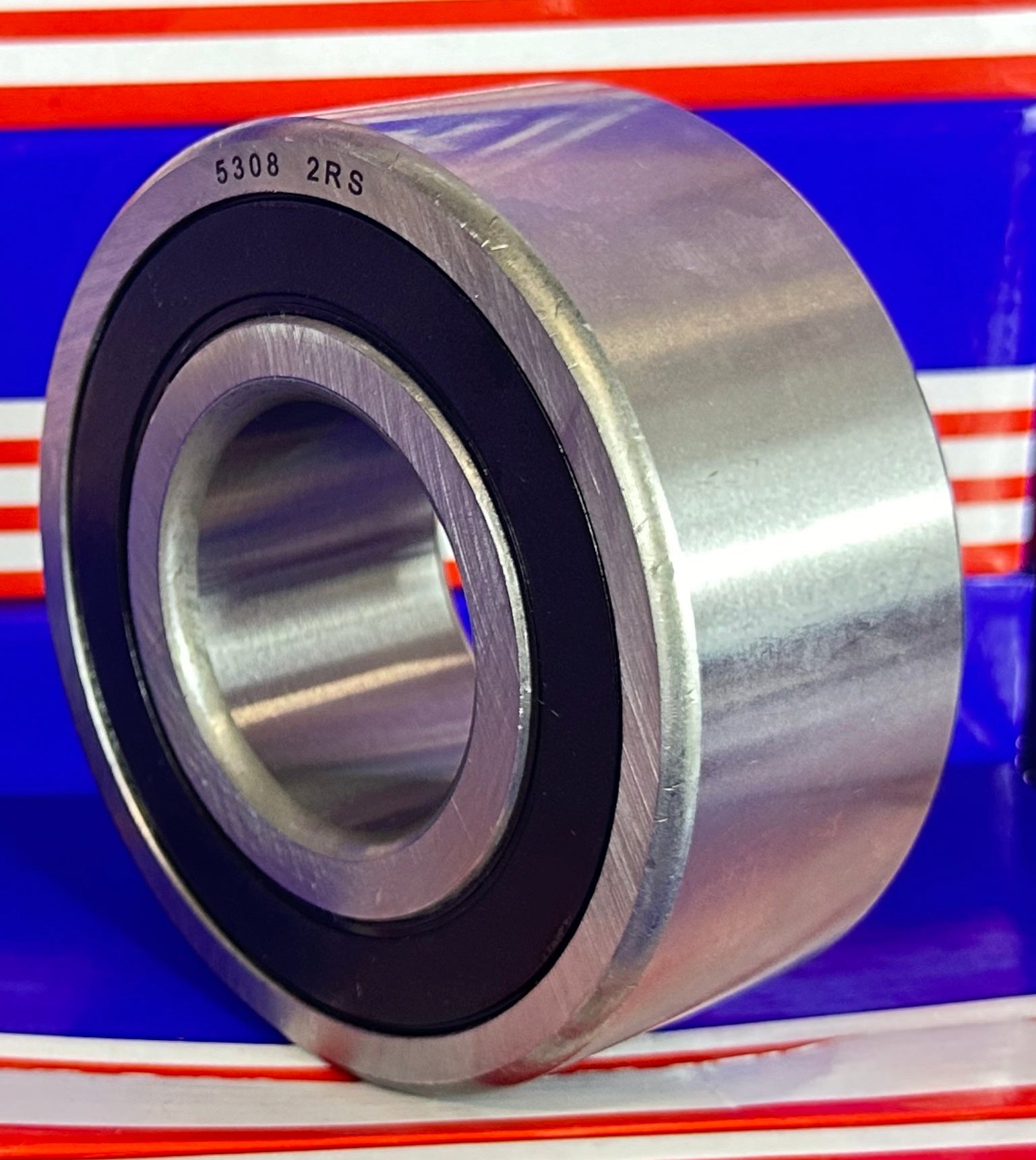

5308-2RS Double Row Angular Ball Bearing, rubber Sealed, Double Row Angular Contact ball bearing has two rows of balls that are arranged in a back-to-back configuration.Double Row Angular Contact ball bearings may offer some economic benefits as well as handling and mounting benefits versus pairs of Single Row Angular Contact ball bearings
- Item: 5308-2RS Ball Bearing
- Type: Double Row Angular Sealed Ball Bearing
- Closures: 2 Rubber Seals
- Dimensions: 40mm x 90mm x 36.5mm/Metric
- ID (inner diameter)/Bore: 40mm
- OD (outer diameter): 90mm
- Width/Height/thickness: 36.5mm
- Size: 40 x 90 x 36.5 mm
- Quantity: One Bearing
- Dynamic load rating Cr: 60,500 N
- Static load rating Cor: 43,000 N
-
Limiting Speed:
- Grease Lubrication: 5,500 RPM
- Oil Lubrication: 7,500 RPM
|
