564534A Conical Roller Bearing 7.75" inch Bore x 10" inch Diameter

BEARING 564534 A CONICAL ROLLER

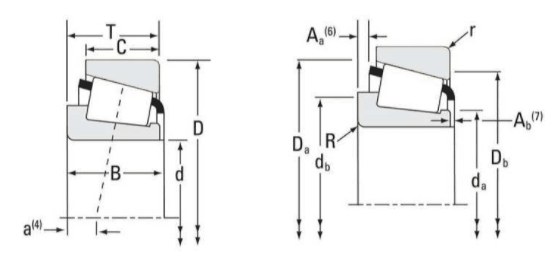

• Item: 564534 A CONICAL ROLLER
• d - Bore: 196.85mm / 7.75" inch / 7-3/4" inch
• D - Cup Outer Diameter: 254mm / 10.00" Inch
• B - Cone Width: 27.783mm / 1.0938" Inch
• C - Cup Width: 21.433mm / 0.8438" Inch
• R - Cone Backface "To Clear" Radius 1.520mm / 0.06" Inch
• r - Cup Backface "To Clear" Radius 1.52mm / 0.06" Inch
• da - Cone Frontface Backing Diameter 208.03mm / 9.13" Inch
• db - Cone Backface Backing Diameter 210.06mm /8.27" Inch
• Da - Cup Frontface Backing Diameter 246.90mm / 9.80" Inch
• Db - Cup Backface Backing Diameter 243.08mm / 9.57" Inch
• Ab - Cage Cone Frontface Clearance 2.5mm / 0.1" Inch
• Aa - Cage Cone Backface Clearance 2mm / 0.08" Inch
• a - Effective Center Location 14.2mm / 0.56" Inch
