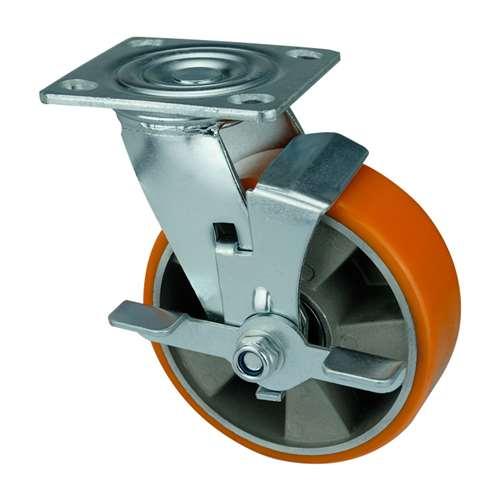

6" Inch Heavy Duty Caster Wheel 1102 pounds Swivel and Center Brake Aluminium and Polyurethane Top Plate

6" Inch Caster Wheel 1102 pounds Swivel and Center Brake Aluminium and Polyurethane Top Plate

Item Name= VXB005C150BAPUB1

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 200mm

Overall Height Inch= 7.874"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm x 6mm

Hole distance= 72mm x 85mm

Wheel Core= Aluminium and Polyurethane

Tire= Aluminium and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 1102 lb

Mounting= Swivel and Center Brake

Temperature Range= -40 to 180 F

Utilizing VXB005C150BAPUB1 makes it feasible to pull and push items instead of transport Diameter size of the caster wheel has a metric standard 150mm which is equal to 5.906" inch with imperial units. The wheel has a width of 50mm=1.969" inch. Overall height of the wheel caster is 200mm = 7.874" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 115mm x 100mm x 6mm and holes distance of 72mm x 85mm. Low drag was achieved by a Aluminium and Polyurethane core on a Aluminium and Polyurethane tire spinning freely with a Double ball beaing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 1102 lb with a Swivel and Center Brake type. The caster temperature range = -40 to 180 F. Buy our VXB005C150BAPUB1, we wish all the best.
