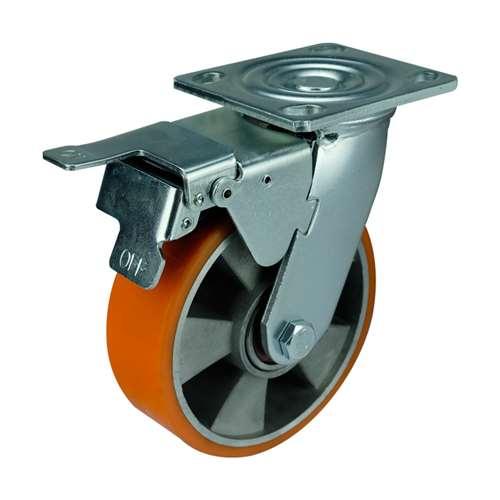

6" Inch Heavy Duty Caster Wheel 1102 pounds Swivel and Upper Brake Aluminium and Polyurethane Top Plate

6" Inch Caster Wheel 1102 pounds Swivel and Upper Brake Aluminium and Polyurethane Top Plate

Item Name= VXB005C150BAPUB2

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 200mm

Overall Height Inch= 7.874"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm x 6mm

Hole distance= 72mm x 85mm

Wheel Core= Aluminium and Polyurethane

Tire= Aluminium and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 1102 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Moves large items quicker using the VXB005C150BAPUB2. The wheel diameter is 150mm or 5.906" inch in inches. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 200mm/7.874" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 115mm x 100mm x 6mm and holes distance of 72mm x 85mm. Low drag was achieved by a Aluminium and Polyurethane core on a Aluminium and Polyurethane tire spinning freely with a Double ball beaing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 1102 lb with a Swivel and Upper Brake type. The caster temperature range = -40 to 180 F. Buy the VXB005C150BAPUB2 now, just add the quantity to basket and click on Checkout.
