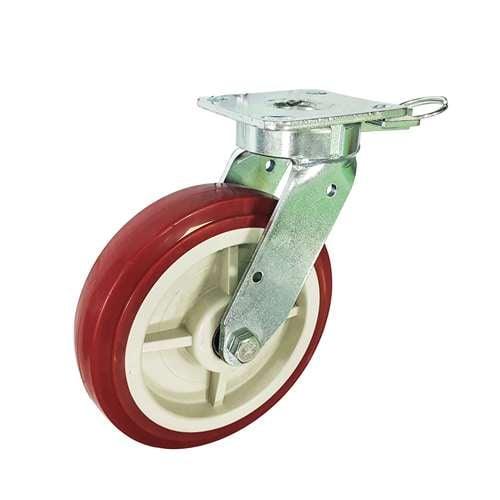

6" Inch Heavy Duty Caster Wheel 1102 pounds Swivel and Upper Brake Aluminium and Polyurethane Top Plate

6" Inch Caster Wheel 1102 pounds Swivel and Upper Brake Aluminium and Polyurethane Top Plate

Item Name= VXB005C150BAPUB3

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 200mm

Overall Height Inch= 7.874"

Mounting Type= Top Plate

Top Plate Size= 115mm x 100mm x 6mm

Hole distance= 72mm x 85mm

Wheel Core= Aluminium and Polyurethane

Tire= Aluminium and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 1102 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Utilizing VXB005C150BAPUB3 makes it feasible to pull and push items instead of transport And rolling on wheel that has 150mm diameter/5.906" inch. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 200mm/7.874" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 115mm x 100mm x 6mm with the holes distance of 72mm x 85mm. Low drag was achieved by a Aluminium and Polyurethane core on a Aluminium and Polyurethane tire spinning freely with a Double ball beaing. Bearing in mind that every caster wheel has the load capacity of 1102 lb with a Swivel and Upper Brake type. The caster temperature range = -40 to 180 F. Buy our VXB005C150BAPUB3, we wish all the best.
