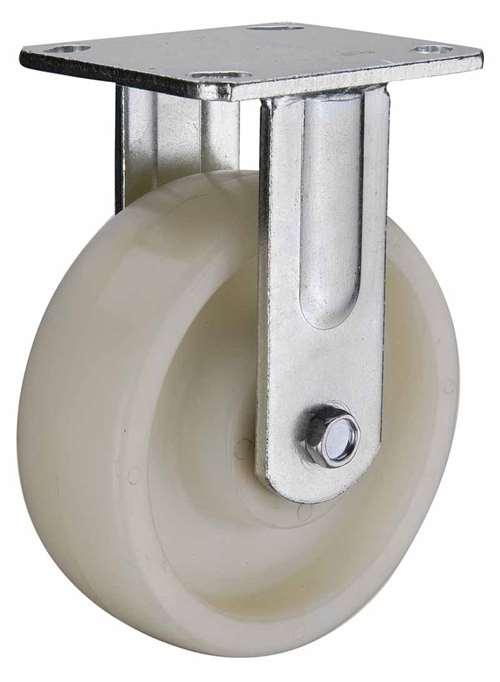

6" Inch Heavy Duty Caster Wheel 1543 pounds Fixed Polyamide (Nylon) Top Plate

6" Inch Caster Wheel 1543 pounds Fixed Polyamide (Nylon) Top Plate

Item Name= VXB00515050BNYF

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 190mm

Overall Height Inch= 7.480"

Mounting Type= Top Plate

Top Plate Size= 115mm x 110mm x 6mm

Hole distance= 72mm x 85mm

Wheel Core= Polyamide (Nylon)

Tire= Polyamide (Nylon)

Bearing type= Double ball beaing

Load Capacity= 1543 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Moves large items quicker using the VXB00515050BNYF. The wheel diameter is 150mm or 5.906" inch in inches. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 190mm/7.480" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 115mm x 110mm x 6mm and holes distance of 72mm x 85mm. Low drag was achieved by a Polyamide (Nylon) core on a Polyamide (Nylon) tire spinning freely with a Double ball beaing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 1543 lb with a Fixed type. The caster temperature range = -40 to 180 F. Buy our VXB00515050BNYF, we wish all the best.
