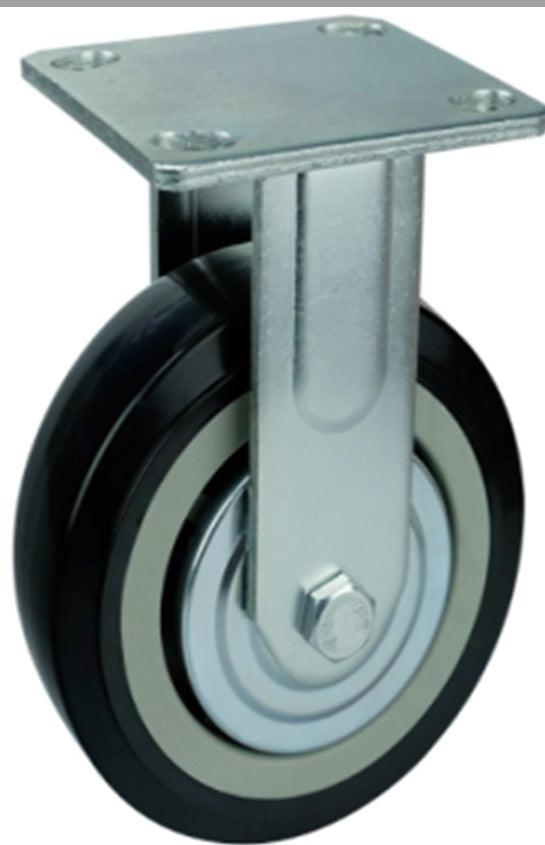

6" Inch Heavy Duty Caster Wheel 617 pounds Fixed Polyvinyl Chloride Top Plate

6" Inch Caster Wheel 617 pounds Fixed Polyvinyl Chloride Top Plate

Item Name= VXB005150BPVC1F

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 195mm

Overall Height Inch= 7.677"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Polyvinyl Chloride

Tire= Polyvinyl Chloride

Bearing type= Double ball beaing

Load Capacity= 617 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Utilizing VXB005150BPVC1F makes it feasible to pull and push items instead of transport Diameter size of the caster wheel has a metric standard 150mm which is equal to 5.906" inch with imperial units. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 195mm/7.677" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. The weehl core material is Polyvinyl Chloride and has a Polyvinyl Chloride tire with a low friction Double ball beaing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 617 lb with a Fixed type. Temperature range is -40 to 180 F. Buy the VXB005150BPVC1F now, just add the quantity to basket and click on Checkout.
