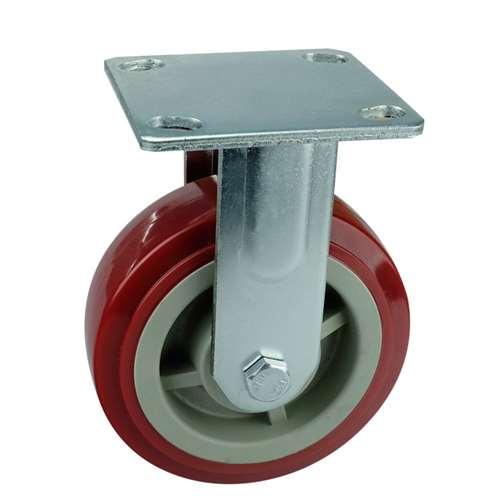

6" Inch Heavy Duty Caster Wheel 617 pounds Fixed Polyvinyl Chloride Top Plate

6" Inch Caster Wheel 617 pounds Fixed Polyvinyl Chloride Top Plate

Item Name= VXB005150PVCF

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 195mm

Overall Height Inch= 7.677"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Polyvinyl Chloride

Tire= Polyvinyl Chloride

Bearing type= Double ball beaing

Load Capacity= 617 lb

Mounting= Fixed

Temperature Range= -40 to 180 F

Utilizing VXB005150PVCF makes it feasible to pull and push items instead of transport And rolling on wheel that has 150mm diameter/5.906" inch. Dimensions of the caster wheel is 50mm (1.969" inch). Overall height of the wheel caster is 195mm = 7.677" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The Double ball beaing design will enable the Polyvinyl Chloride tire to roll easily with a core made of Polyvinyl Chloride. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 617 lb with a Fixed type. Temperature range is -40 to 180 F. Buy our VXB005150PVCF, we wish all the best.
