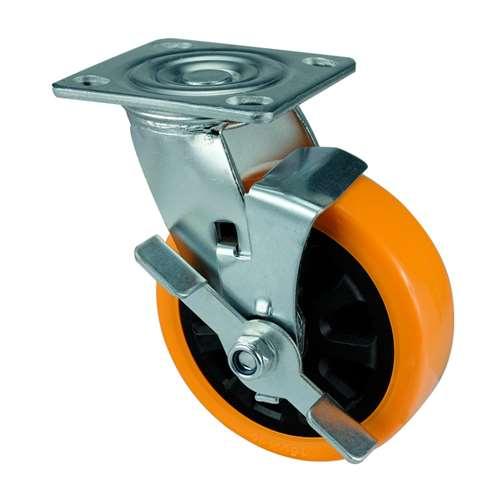

6" Inch Heavy Duty Caster Wheel 617 pounds Side brake Polyurethane Top Plate

6" Inch Caster Wheel 617 pounds Side brake Polyurethane Top Plate

Item Name= VXB005150HPUB1

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 195mm

Overall Height Inch= 7.677"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Polyurethane

Tire= Polyurethane

Bearing type= Double ball beaing

Load Capacity= 617 lb

Mounting= Side brake

Temperature Range= -40 to 180 F

Utilizing VXB005150HPUB1 makes it feasible to pull and push items instead of transport Diameter size of the caster wheel has a metric standard 150mm which is equal to 5.906" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The caster dimensions heightwise is 195mm/7.677" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. The weehl core material is Polyurethane and has a Polyurethane tire with a low friction Double ball beaing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 617 lb with a Side brake type. Temperature range is -40 to 180 F. Buy the VXB005150HPUB1 now, just add the quantity to basket and click on Checkout.
