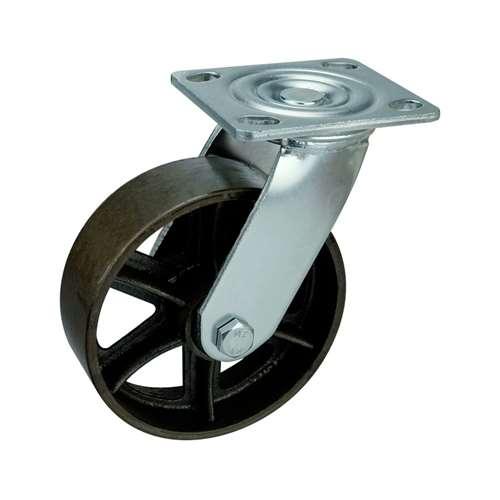

6" Inch Heavy Duty Caster Wheel 617 pounds Swivel Cast iron Top Plate

6" Inch Caster Wheel 617 pounds Swivel Cast iron Top Plate

Item Name= VXB005150C

Heavy Duty

Wheel Diameter= 150mm

Wheel Width= 50mm

Wheel Diameter= 6" Inch = 150mm

Overall Height= 193mm

Overall Height Inch= 7.598"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Cast iron

Tire= Cast iron

Bearing type= Roller bearing

Load Capacity= 617 lb

Mounting= Swivel

Temperature Range= -40 to 180 F

VXB005150C is a device comprising a wheel that's connected to the base of a huge object like a trailers, your home furniture, even your truck to transfer the item more quickly and readily. them.You need {Item Name} to have your office desk, equipment or even a machine to easily roll them around. Diameter size of the caster wheel has a metric standard 150mm which is equal to 5.906" inch with imperial units. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 193mm/7.598" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. The weehl core material is Cast iron and has a Cast iron tire with a low friction Roller bearing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 617 lb with a Swivel type. The caster temperature range = -40 to 180 F. Buy the VXB005150C now, just add the quantity to basket and click on Checkout.
